Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

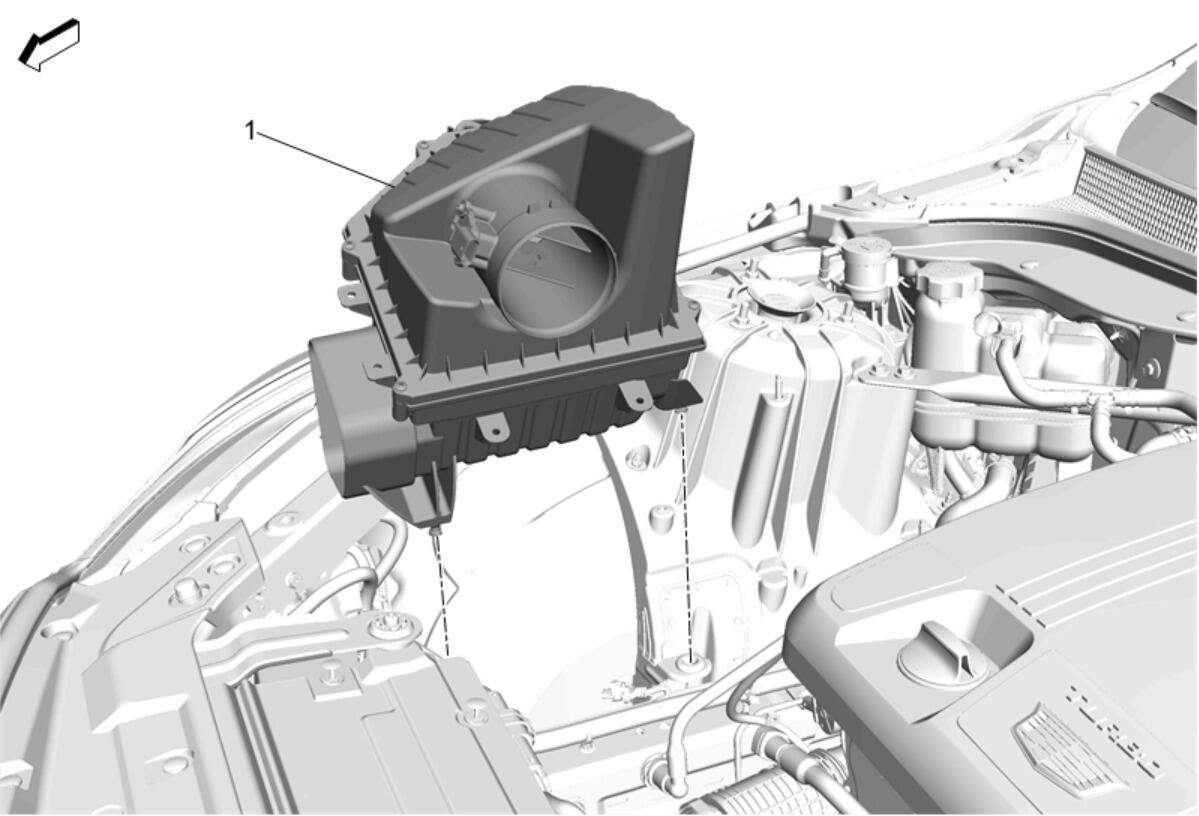

  1. GM5300272Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (1) - Install

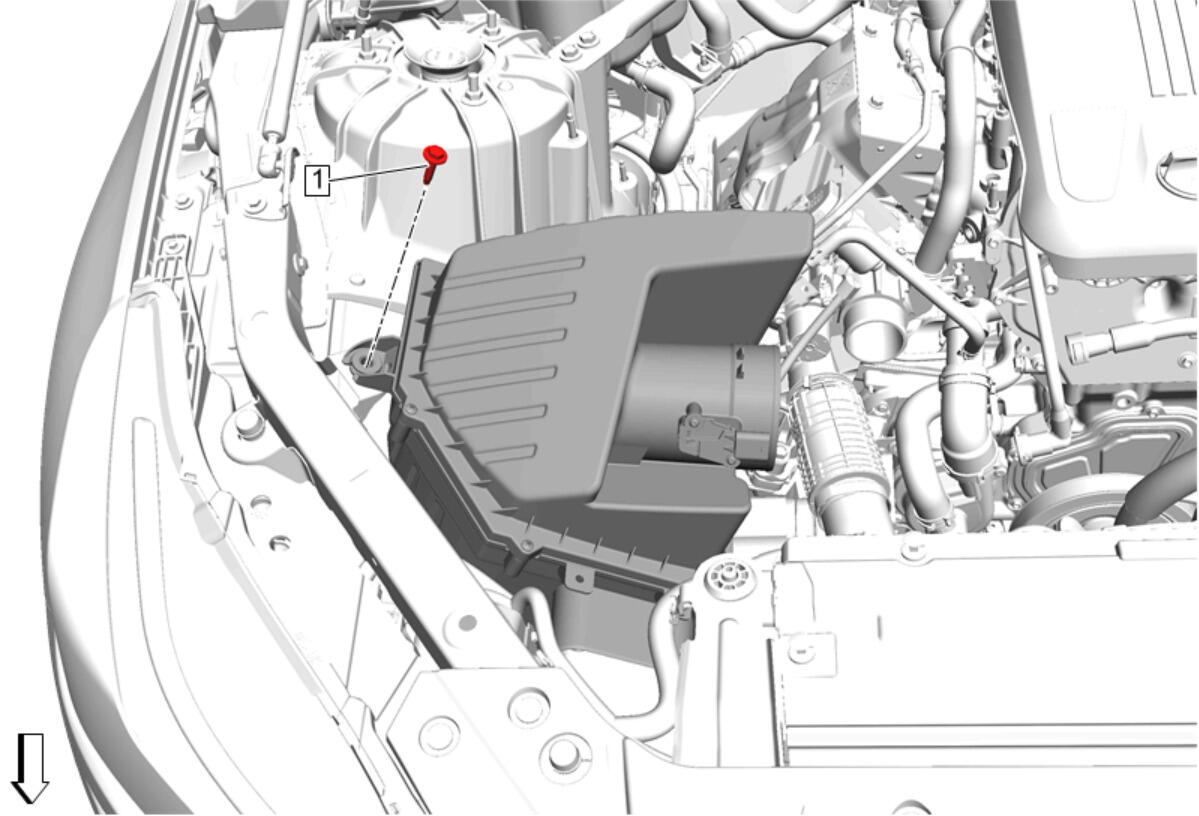

  2. GM5300246Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Air Cleaner Bolt (1) - Install and tighten 9 N.m (80 lb in)

  3. Connect the electrical connector and install all wiring harnesses to the air cleaner assembly.
  4. GM5300245Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (1) - Install - Air Cleaner Outlet Duct Replacement
