Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

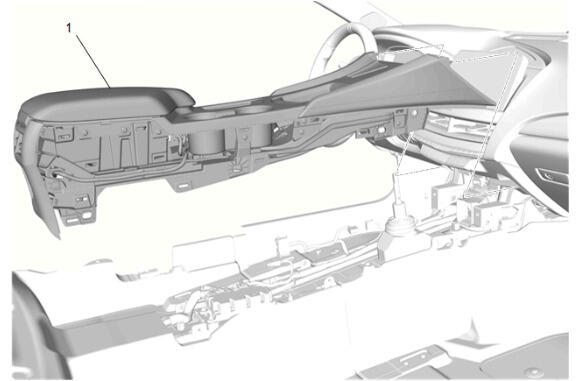

  1. GM5867797Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Remove - Front Floor Console Removal and Installation (with M5N) , or Front Floor Console Removal and Installation (with MQA) , or Front Floor Console Removal and Installation (Blackwing)

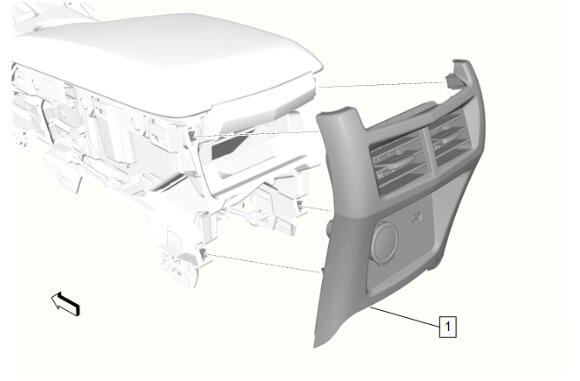

  2. GM5873790Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  3. Reposition the component to access the electrical connectors.
  4. Disconnect the electrical connectors.
  5. Front Floor Console Rear Trim Panel (1) - Remove

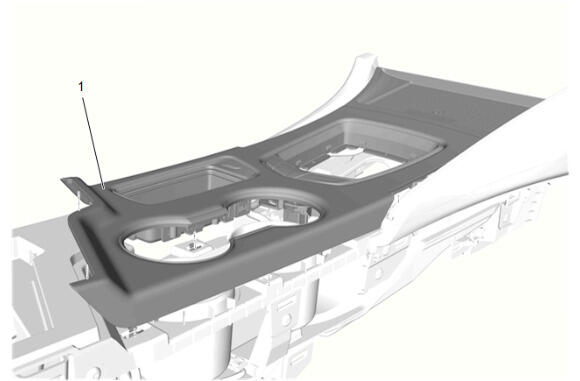

  6. GM5873791Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  7. Reposition the front floor console trim plate (1) to access the electrical connectors.
  8. Disconnect the electrical connectors.

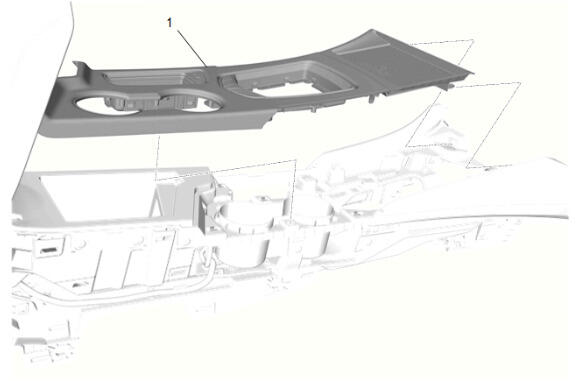

  9. GM5873792Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate (1) - Remove

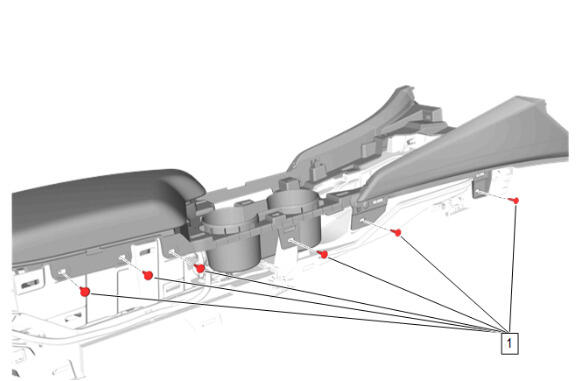

  10. GM5873793Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Bolt (1) - Remove [6x]

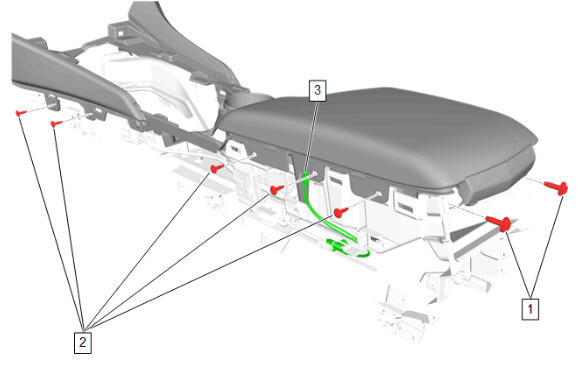

  11. GM5873795Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Bolt (1) - Remove [2x]

  12. Front Floor Console Cup Holder Bolt (2) - Remove [5x]
  13. Remove the front floor console bin lamp (3) from the front floor console cup holder.

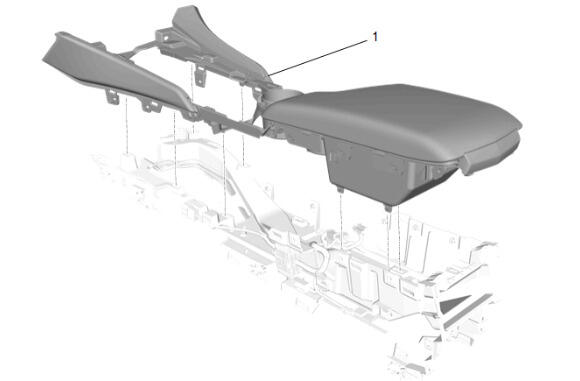

  14. GM5873796Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  15. Reposition the component to access the electrical connectors.
  16. Disconnect the electrical connector.
  17. Front Floor Console Cup Holder (1) - Remove

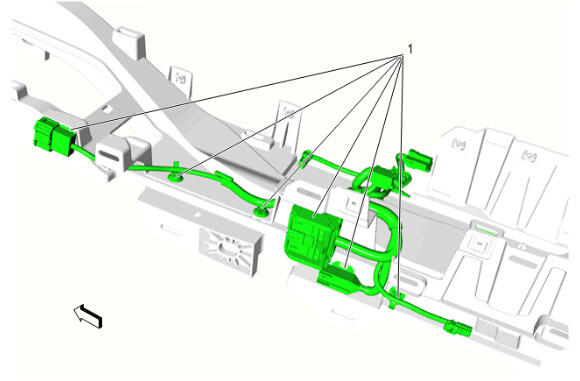

  18. GM5873797Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Quantity of clips and routing of the front floor console wiring harness may vary based on option content.

    Release the wiring harness clips and connectors on the front floor console wiring harness (1).

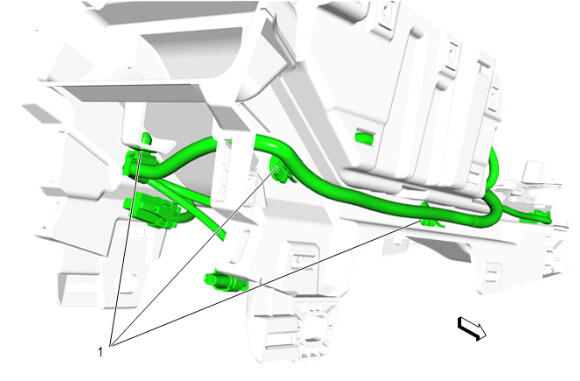

  19. GM5873798Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Quantity of clips and routing of the front floor console wiring harness may vary based on option content.

    Release the wiring harness clips on the front floor console wiring harness (1).

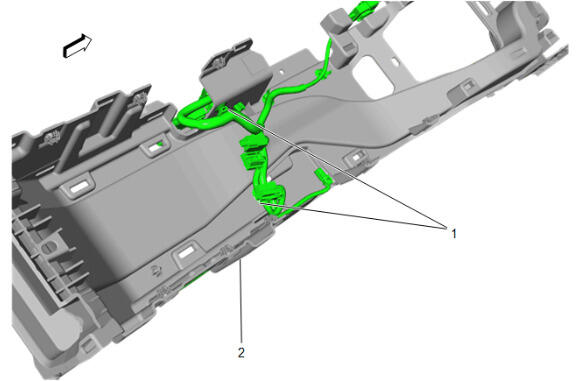

  20. GM5873800Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Quantity of clips and routing of the front floor console wiring harness may vary based on option content.

    Release the wiring harness clips and remove the front floor console wiring harness (1) from the front floor console retainer (2).
