Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Using a flat-bladed plastic trim tool, release the retaining clips.
- Loosen the front floor console rear trim panel (1) enough to clear the tabs of the front floor console extension panel (2).
- Reposition the seat as necessary to access the retaining clips.
- Using a flat-bladed plastic trim tool, release the retaining clips.
- Front Floor Console Extension Panel - Right Side (2) - Remove
Loosen the front floor console rear trim panel (1) enough to clear the tabs of the front floor console extension panel (2).
- Reposition the seat as necessary to access the retaining clips.
- Using a flat-bladed plastic trim tool, release the retaining clips.
- Front Floor Console Extension Panel - Left Side (2) - Remove

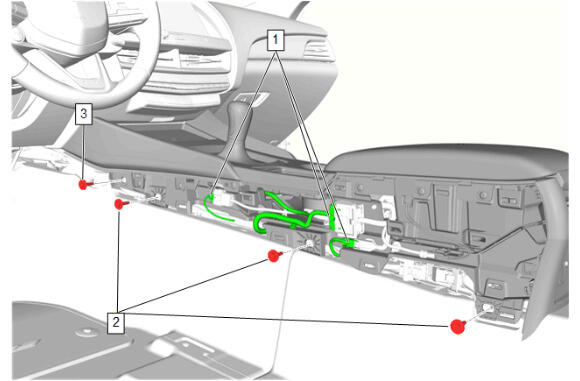

Disconnect the electrical connectors (1) from the front floor console wiring harness.
- Front Floor Console Bolt (2) - Remove [3x]
- Front Floor Console Bracket Bolt (3) - Remove

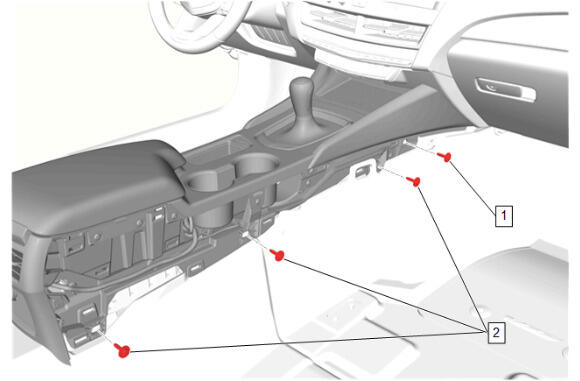

Front Floor Console Bracket Bolt (1) - Remove
- Front Floor Console Bolt (2) - Remove [3x]
- Apply the parking brake.
- Place the transmission control in the Neutral position.
Using a flat bladed trim tool, detach the manual transmission control lever boot (2) from the console.
- Lift the manual transmission control lever boot (2) to access the manual transmission control lever knob bolt (3).
- Remove the manual transmission control lever knob bolt (3), then lift off the manual transmission control lever boot and knob assembly (1, 2).
With the aid of an assistant, lift the floor console (1) upward and rearward away from the instrument panel.
NOTE:
The transmission control lever boot and knob are replaced as an assembly.
