Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the auxiliary power outlet fuse from the fuse block.
  2. GM5338433Courtesy of GENERAL MOTORS COMPANY

    Remove the front floor console accessory power rear receptacle (1):

    1. Look into the receptacle (1). There are two 3 mm (0.11 in) tab windows 12 mm (0.47 in) from the front of the receptacle. The EL-42059  Cigar Lighter Socket Remover pushes the plastic latches from these tab windows and the receptacle can be pulled straight out.
    2. Place one side of the "T" portion of the EL-42059  Cigar Lighter Socket Remover into the tab window. The EL-42059  Cigar Lighter Socket Remover will not fit straight into the receptacle (1). Angle the EL-42059  Cigar Lighter Socket Remover slightly for insertion into the receptacle.
    3. Insert the other side of the "T" into the opposite tab window.

      You must move the EL-42059  Cigar Lighter Socket Remover handle toward horizontal to engage the other tab window.

    4. Use the EL-42059  Cigar Lighter Socket Remover to pull the receptacle (1) straight out.
  3. If EL-42059  Cigar Lighter Socket Remover tool fails to release the receptacle (1) from the retainer, perform the following alternate method:
    1. Insert a small grinding tool with a cutoff wheel into the socket.
    2. Remove the plastic latches in the 3 mm (0.11 in) square windows.
    3. Use the EL-42059  Cigar Lighter Socket Remover as directed above to remove the socket.
    4. Disconnect the electrical connector to the front floor console accessory power rear receptacle (1).
  4. GM5500674Courtesy of GENERAL MOTORS COMPANY

    Using a suitable plastic trim tool, release the retaining tabs.

  5. Front Floor Console Accessory Power Rear Receptacle Retainer (1) - Remove
  6. GM5869045Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  7. Reposition the component to access the electrical connectors.
  8. Disconnect the electrical connectors.
  9. Front Floor Console Rear Trim Panel (1) - Remove

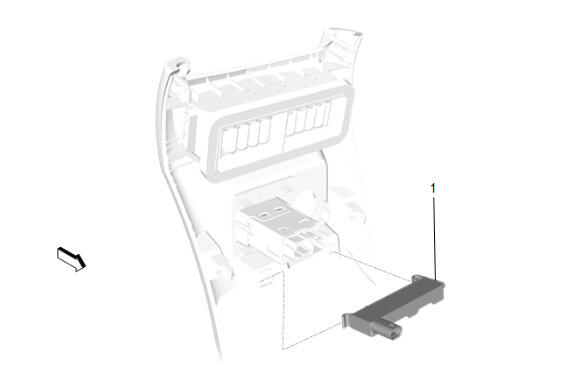

  10. GM5869046Courtesy of GENERAL MOTORS COMPANY

    Release the retaining tabs.

  11. Low Frequency Console Antenna (1) - Remove
  12. GM5869047Courtesy of GENERAL MOTORS COMPANY

    Release the retaining tabs.

  13. Single Charge Only 2nd Row Receptacle (1) - Remove

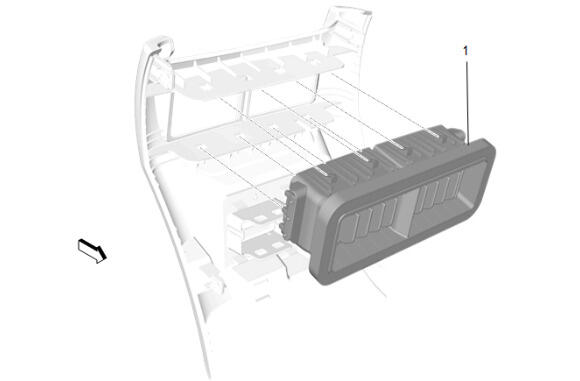

  14. GM5869048Courtesy of GENERAL MOTORS COMPANY

    Release the retaining tabs.

  15. Front Floor Console Rear Air Outlet (1) - Remove
