Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Front Floor Console Rear Air Outlet (1) - Install
Single Charge Only 2nd Row Receptacle (1) - Install
Low Frequency Console Antenna (1) - Install
Connect the electrical connectors.
- Front Floor Console Rear Trim Panel (1) - Install
Front Floor Console Accessory Power Rear Receptacle Retainer (1) - Install
Route the connector through the front floor console accessory power rear receptacle retainer. Align the retainer to the slot in the opening.
- Install the retainer by pressing into place until fully seated.

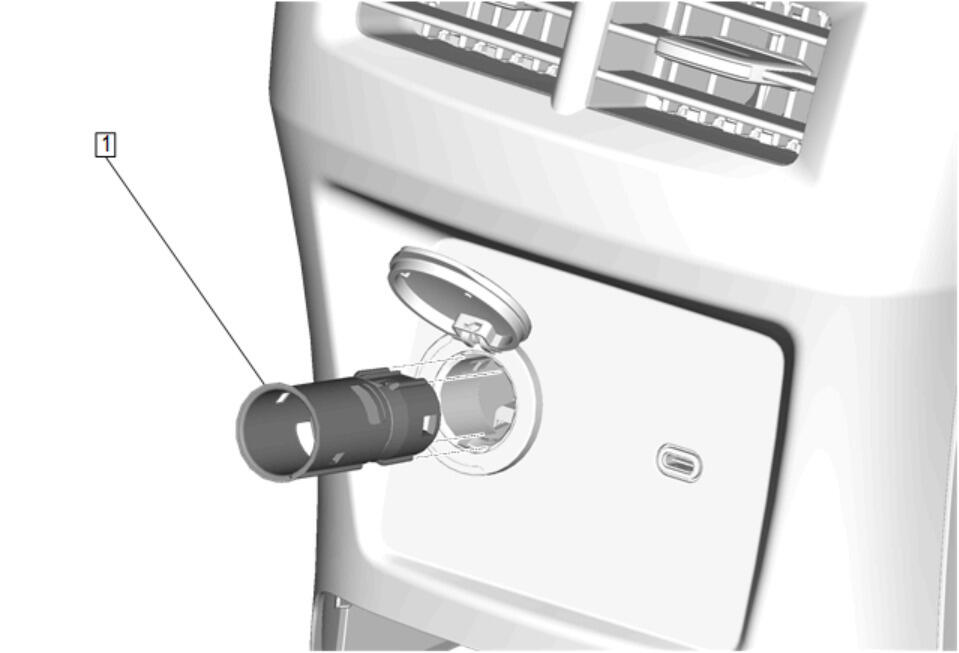

- Connect the electrical connector to the front floor console accessory power rear receptacle (1).
- Align the tabs on the receptacle (1) to the slots in the retainer. Install the front floor console accessory power rear receptacle by pressing into place until fully seated.
- Install the auxiliary power outlet fuse.
