Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

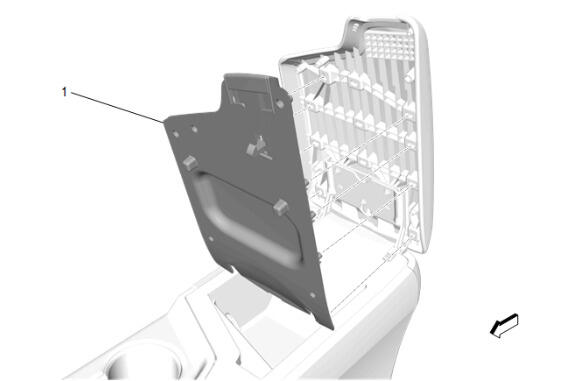

  1. GM5871489Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Latch (1) - Install

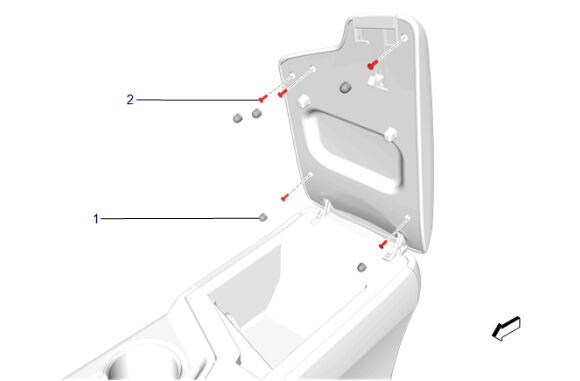

  2. GM5871488Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Armrest Latch Bolt (2) - Install and tighten [5x] - Fastener Specifications

  3. Front Floor Console Armrest Bumper (1) - Install [5x]
