Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Cooling System Draining and Filling (LGY Static Fill) , or Cooling System Draining and Filling (LGY GE 47716)

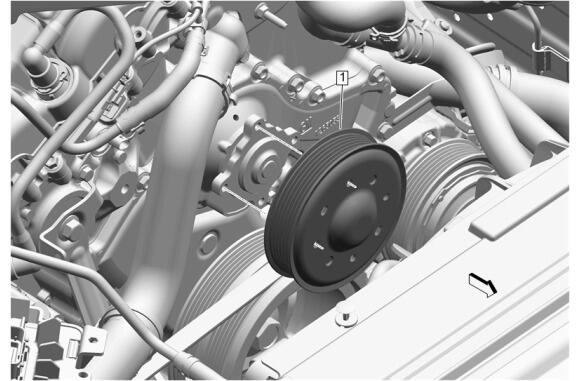

Drive Belt Tensioner (2) - Remove - Drive Belt Tensioner Replacement
Water Pump Pulley (1) - Remove - Water Pump Pulley Replacement

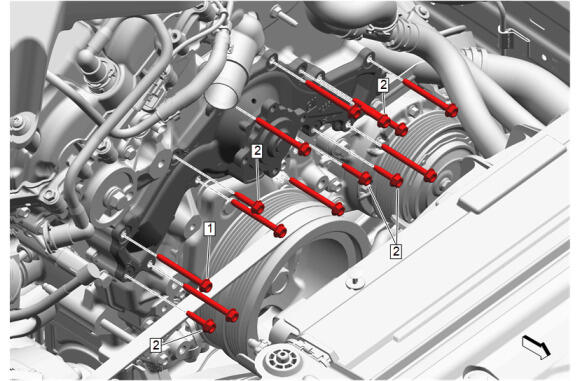

Engine Front Cover Bolt (1) - Remove [9x]
- Water Pump Bolt (2) - Remove [5x]

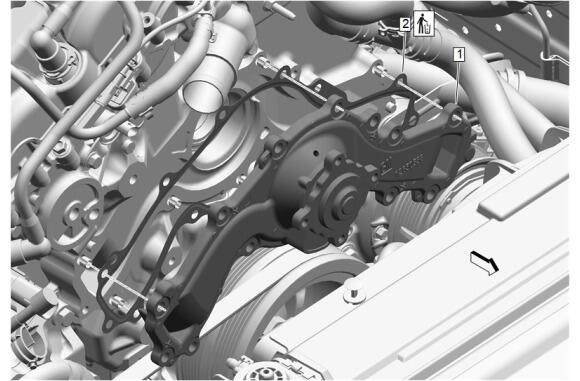

Water Pump (1) - Remove
- Water Pump Gasket (2) - Remove and DISCARD
