Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

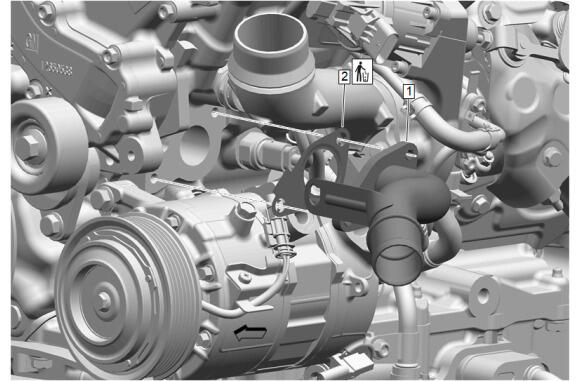

Water Inlet Seal (2) - Install NEW

Water Pump Inlet Pipe (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

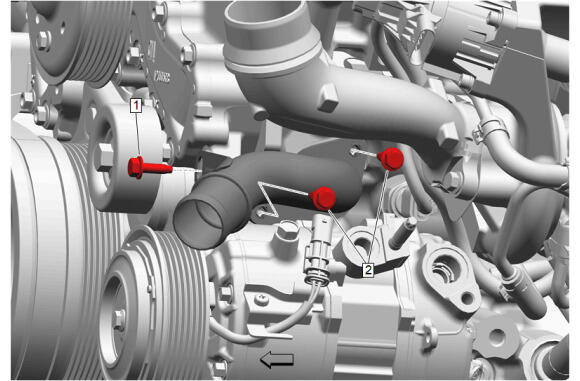

Water Pump Inlet Pipe Bolt (2) - Install and tighten [2x] 15 N.m (11 lb ft)
Water Pump Inlet Pipe Bolt (1) - Install and tighten 15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

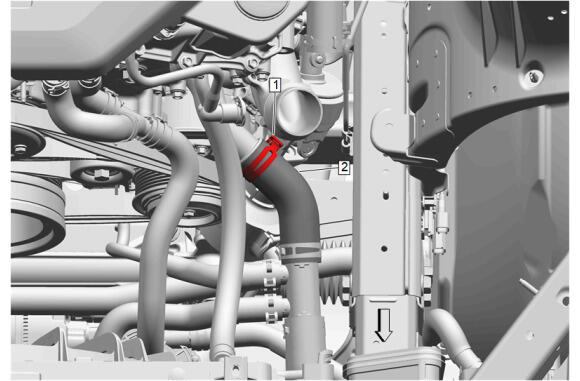

Radiator Outlet Hose (2) @Water Pump Inlet Pipe - Install
Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Air Cleaner Outlet Duct - Install - Air Cleaner Outlet Duct Replacement
Fill the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LGY Static Fill) , or Cooling System Draining and Filling (LGY GE 47716) , or Cooling System Draining and Filling (LT4 Static Fill) , or Cooling System Draining and Filling (LT4 GE 47716)
Start the engine and check for leaks.
