Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Front Compartment Front Sight Shield - Remove - Front Compartment Front Sight Shield Replacement

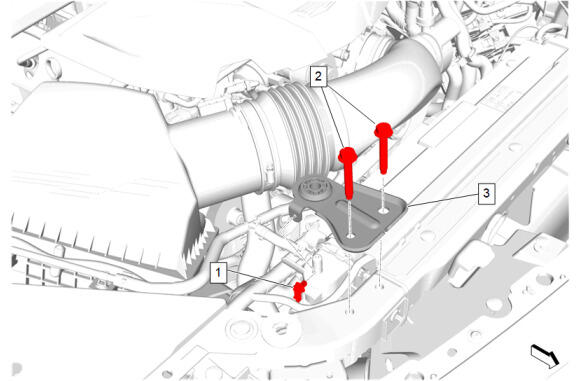

  2. GM5871735Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Remove

  3. Radiator Upper Bracket Bolt (2) - Remove [2x]
  4. Radiator Upper Bracket (3) - Remove
