Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly. Air Cleaner Assembly Replacement
  2. GM5413177Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (2) - Remove - Intake Manifold Cover Replacement

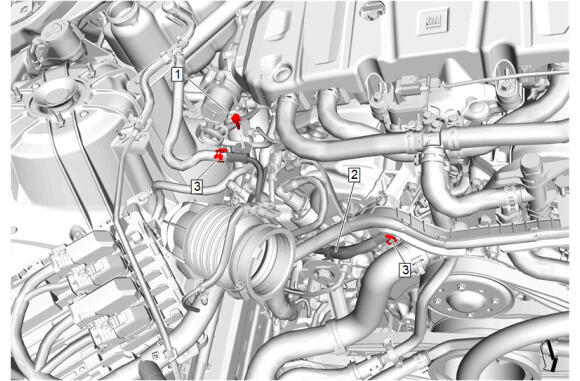

  3. GM5518380Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Inlet Hose Bolt (1) - Remove

  4. Radiator Surge Tank Inlet Hose Clamp (3) - Disengage [2x] - Hose Clamp Replacement Guidelines - Spring Type
  5. Radiator Surge Tank Outlet Pipe (2) - Remove
