Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Place an absorbent cloth beneath the hose to catch any coolant spillage.

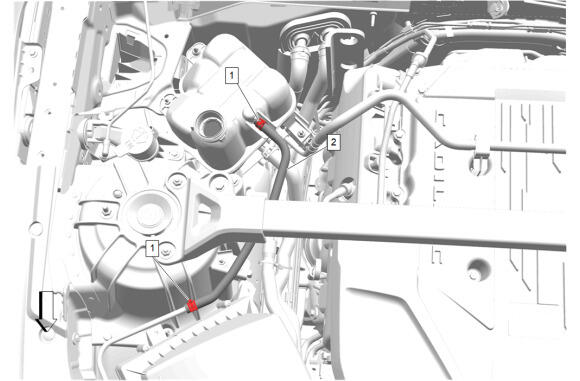

Radiator Surge Tank Inlet Hose Clamp (1) - Disengage [2x] - Hose Clamp Replacement Guidelines - Spring Type
- Radiator Surge Tank Inlet Hose (2) - Remove
