Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill)
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Lower Baffle (1) - Remove - Radiator Air Lower Baffle Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Upper Baffle (1) - Remove - Radiator Air Upper Baffle Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket- Left Side (2) - Remove - Radiator Upper Bracket Replacement - Left Side (LGY, LSY)
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket- Right Side (3) - Remove - Radiator Upper Bracket Replacement - Right Side (LGY, LSY)
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Side Baffle - Left Side (1) - Remove - Radiator Air Side Baffle Replacement - Left Side (LSY)
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Side Baffle - Right Side (1) - Remove - Radiator Air Side Baffle Replacement - Right Side (LSY)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporator Tube Clip Bracket Bolt (4) @Engine Coolant Fan - Remove - Air Conditioning Refrigerant Heat Exchanger Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

Without disconnecting the air conditioning refrigerant heat exchanger from the air conditioning condenser, remove the air conditioning condenser tube clip (2) from the engine coolant fan.
Without disconnecting the air conditioning refrigerant heat exchanger from the air conditioning condenser, remove and support the air conditioning condenser from the radiator. Air Conditioning Condenser Replacement (LSY)
Air Conditioning Condenser Bracket - Remove [2x] - Air Conditioning Condenser Bracket Replacement
Remove and support the charge air cooler from the radiator. Charge Air Cooler Replacement
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Hose (2) Remove - Radiator Outlet Hose Replacement (LSY)
Engine Wiring Harness Retainer@Engine Coolant Fan - Remove
Engine Coolant Temperature Sensor Electrical Connector - Disconnect
Courtesy of GENERAL MOTORS COMPANY

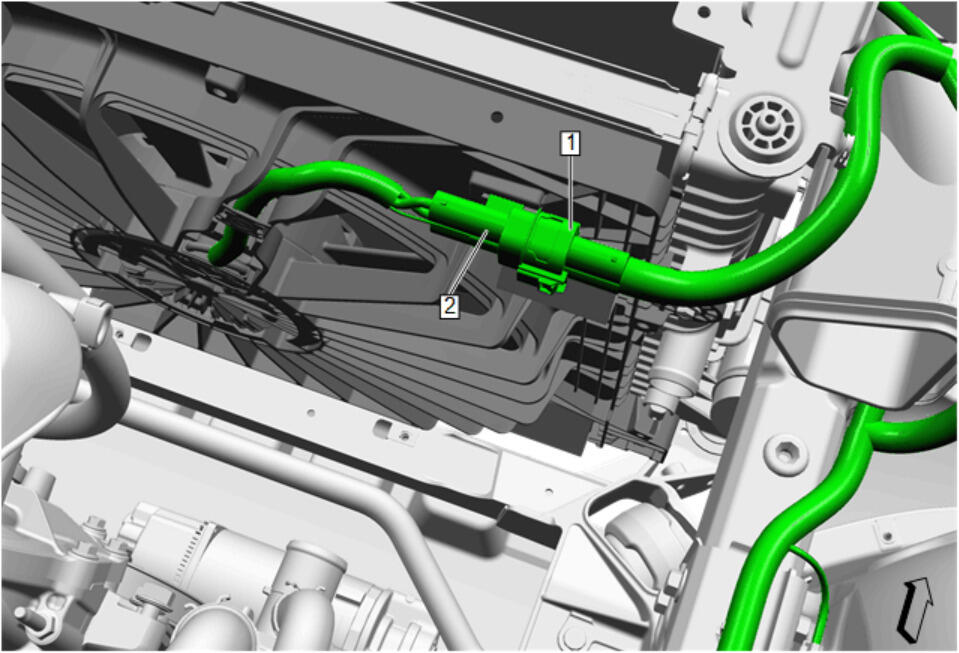

Forward Lamp Wiring Harness (1) @Engine Coolant Fan Electrical Connector (2) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

Radiator Surge Tank Inlet Hose (2) @RadiatorRemove - Radiator Surge Tank Inlet Hose Replacement (LSY Radiator Surge Tank to Radiator Surge Tank Outlet Pipe and Engine Coolant Thermostat Housing Pipe) , or Radiator Surge Tank Inlet Hose Replacement (LSY Radiator Surge Tank Outlet Pipe to Radiator)
Radiator Inlet Hose@Radiator - Remove - Radiator Inlet Hose Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Bolt (2) - Remove [4x]
Engine Coolant Fan (3) @Radiator (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

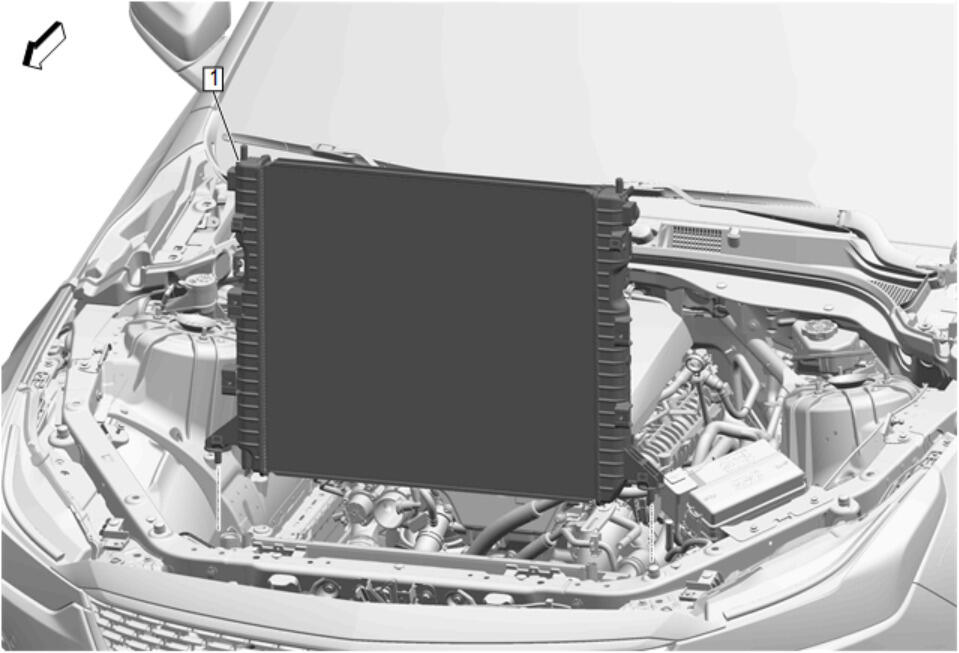

Radiator (1) - Remove
Transfer components as necessary.
