Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Cooling System Draining and Filling (LGY Static Fill) , or Cooling System Draining and Filling (LGY GE 47716)
- Remove the air cleaner assembly. Air Cleaner Assembly Replacement

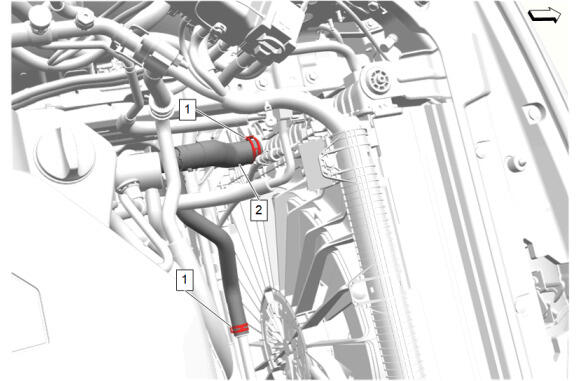

Radiator Outlet Hose Clamp (1) - Disengage [2x] - Hose Clamp Replacement Guidelines - Spring Type
- Radiator Outlet Hose (2) @Engine Radiator - Remove
- Radiator Outlet Hose (2) @Auxiliary Radiator Outlet Pipe - Remove

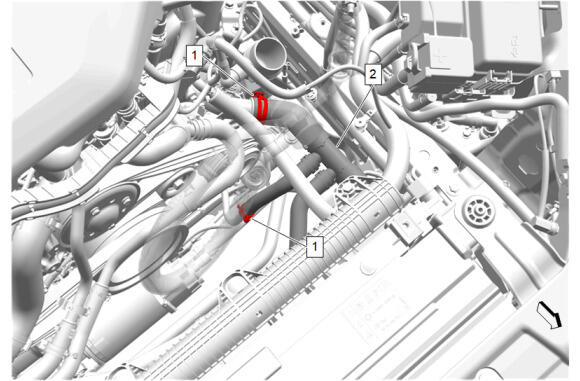

Radiator Outlet Hose Clamp (1) - Disengage [2x] - Hose Clamp Replacement Guidelines - Spring Type
- Radiator Outlet Hose (2) @Water Pump Inlet Pipe - Remove
- Radiator Outlet Hose (2) @Radiator Outlet Pipe - Remove
- Radiator Outlet Hose (2) - Remove
