Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

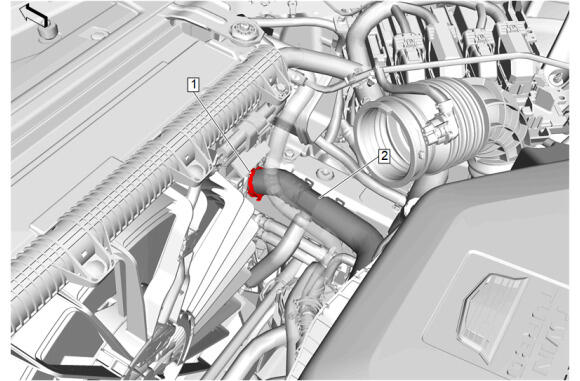

Radiator Inlet Hose (2) @Engine Radiator - Install
- Radiator Inlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type

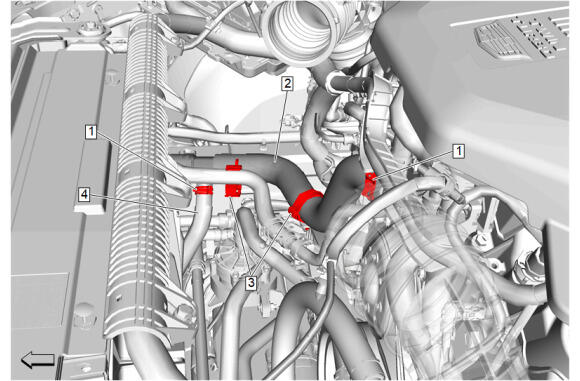

Radiator Inlet Hose (2) @Auxiliary Radiator Inlet Hose (4) - Install
- Radiator Inlet Hose (2) @Water Outlet - Install
- Radiator Inlet Hose Clip (3) - Install [2x]
- Radiator Inlet Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
- Install the air cleaner assembly. Air Cleaner Assembly Replacement
- Fill the cooling system to the proper level. Cooling System Draining and Filling (LGY Static Fill) , or Cooling System Draining and Filling (LGY GE 47716)
- Start the engine and check for coolant leaks.
