Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Front Compartment Front Sight Shield - Remove - Front Compartment Front Sight Shield Replacement

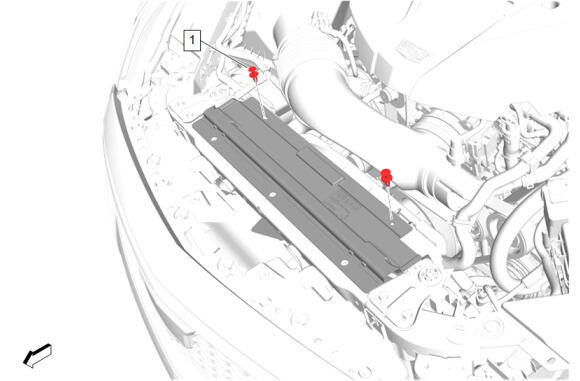

  2. GM5871719Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle Retainer (1) - Remove [5x]

  3. GM5871721Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle (1) - Remove
