Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Radiator Air Upper Baffle (1) - Remove - Radiator Air Upper Baffle Replacement (LSY)
Radiator Upper Bracket - Left Side (2) - Remove - Radiator Upper Bracket Replacement - Left Side (LGY, LSY)
Radiator Upper Bracket- Right Side (3) - Remove - Radiator Upper Bracket Replacement - Right Side (LGY, LSY)
- Forward Lamp Wiring Harness - Reposition
- Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement
- Without removing the intake air duct, reposition the intake air duct to gain access to the radiator air seal retainers. Intake Air Duct Replacement

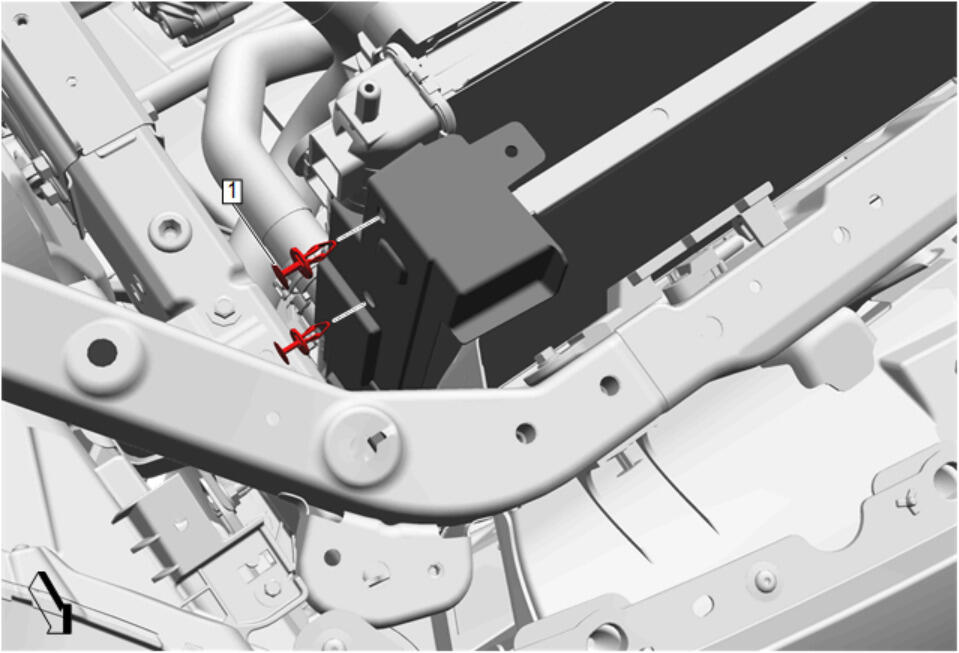

Radiator Air Seal Retainer (1) - Remove [2x]

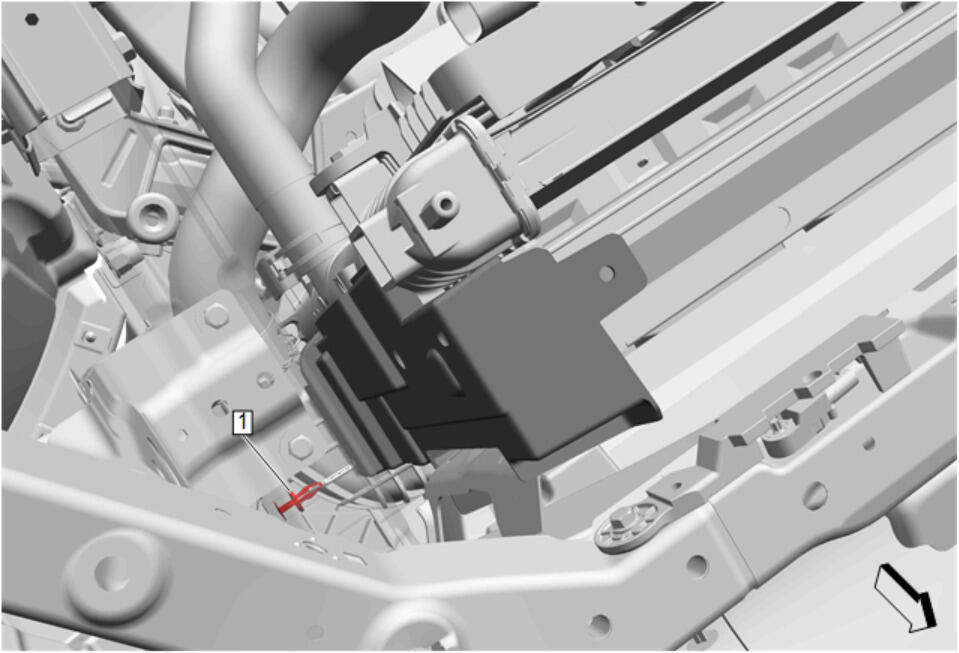

Radiator Air Seal Retainer (1) - Remove

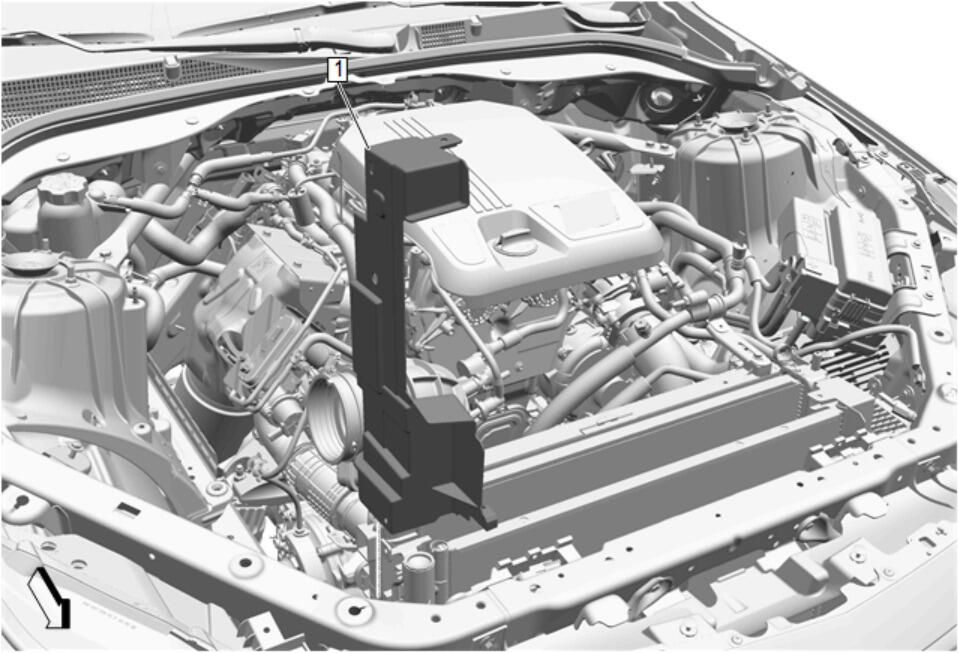

Radiator Air Side Baffle (1) - Remove
