Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Radiator Air Upper Baffle (1) - Remove - Radiator Air Upper Baffle Replacement (LSY)
Radiator Upper Bracket - Left Side (2) - Remove - Radiator Upper Bracket Replacement - Left Side (LGY, LSY)
Radiator Upper Bracket - Right Side (3) - Remove - Radiator Upper Bracket Replacement - Right Side (LGY, LSY)

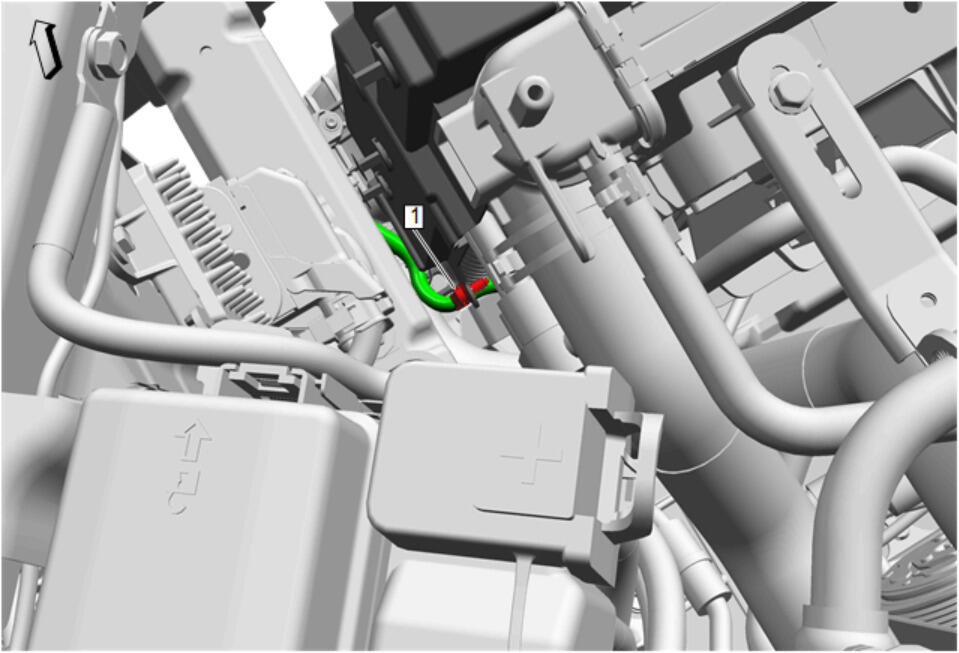

Engine Wiring Harness Retainer (1) @Radiator Air Side Baffle - Left Side - Remove
- Forward Lamp Wiring Harness - Reposition
- Without disconnecting the air conditioning evaporative connector hose/tube and compressor hose from the air conditioning condenser reposition it away from the engine coolant fan. Air Conditioning Refrigerant Heat Exchanger Replacement (LSY)

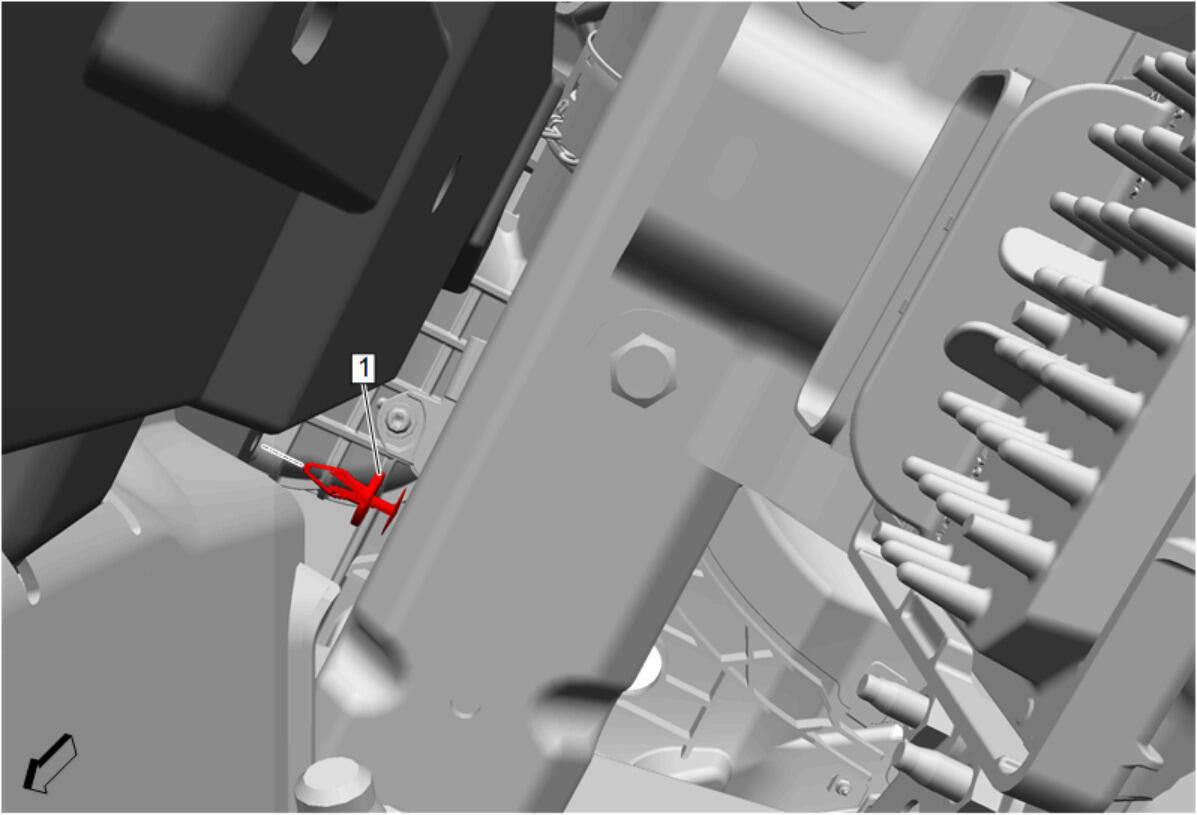

Radiator Air Seal Retainer (1) - Remove [2x]

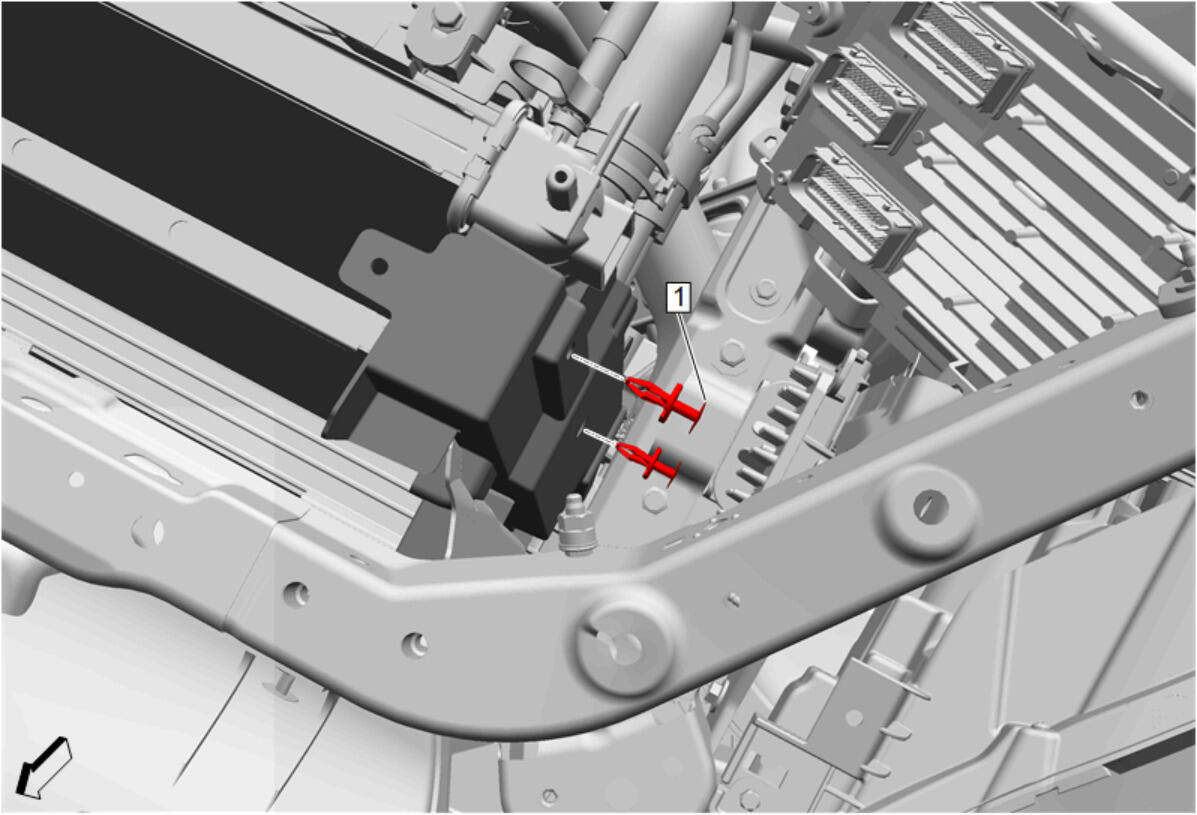

Radiator Air Seal Retainer (1) - Remove
Radiator Air Side Baffle - Left Side (1) - Remove
