Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the charge air cooling system. Charge Air Cooling System Draining and Filling (LGY)
Front Compartment Front Sight Shield Retainer (1) - Remove [13x]
- Front Compartment Front Sight Shield (2) - Remove
Front Bumper Fascia (1) - Remove - Front Bumper Fascia Replacement (without Blackwing) , or Front Bumper Fascia Replacement (with Blackwing)

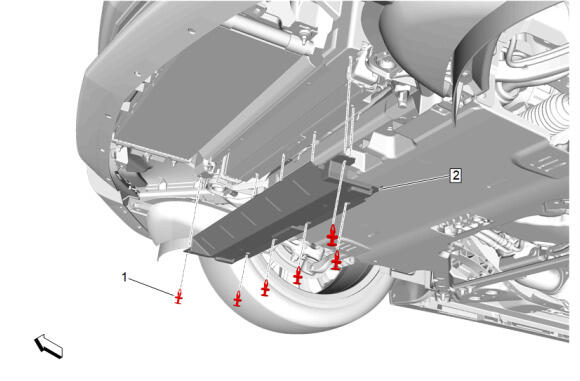

Radiator Air Lower Baffle Retainer (1) - Remove [6x]
- Radiator Air Lower Baffle (2) - Remove

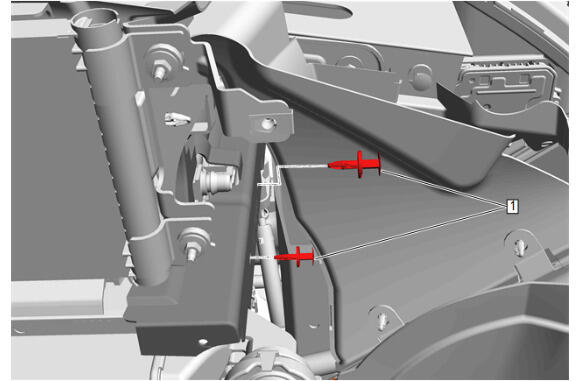

Radiator Air Upper Baffle Retainer (1) - Remove [2x]
- Radiator Air Front Lower Baffle Retainer (2) - Remove [2x]

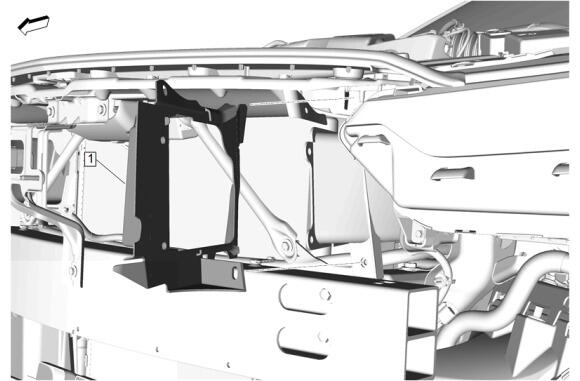

Radiator Air Front Upper Baffle- Left Side (1) - Remove

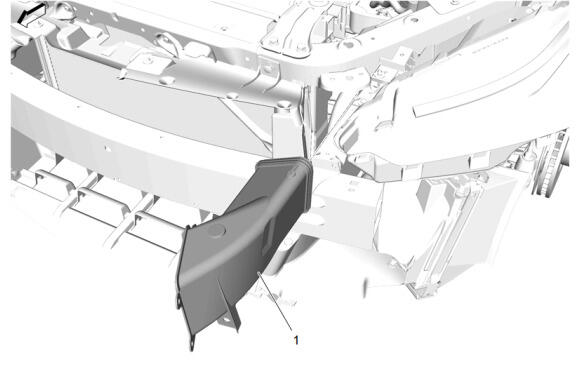

Auxiliary Intake Air Duct (1) - Remove

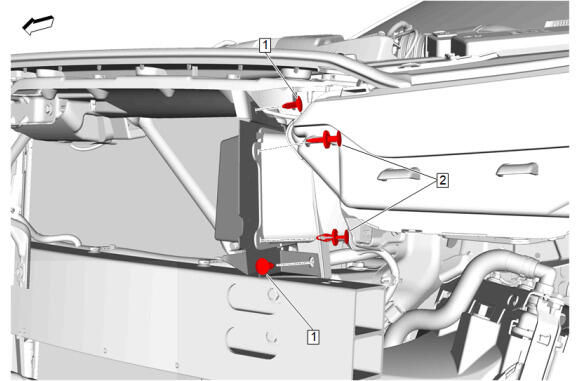

Radiator Upper Bracket Bolt (1) - Remove [2x]
- Radiator Upper Bracket- Left Side (2) - Remove

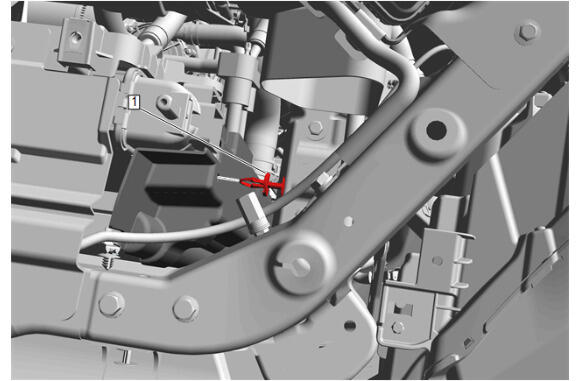

Radiator Air Side Baffle Retainer (1) - Remove

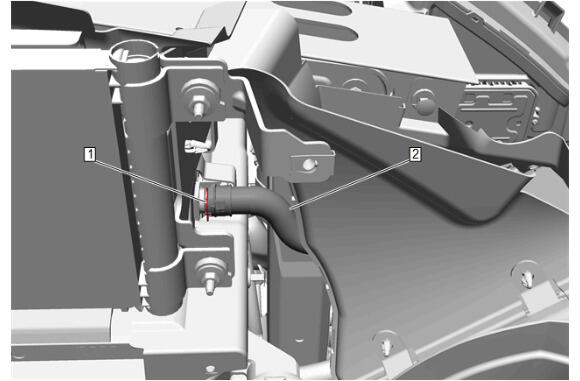

Auxiliary Radiator Outlet Hose Retainer (1) - Disengage
- Auxiliary Radiator Outlet Hose (2) - Remove

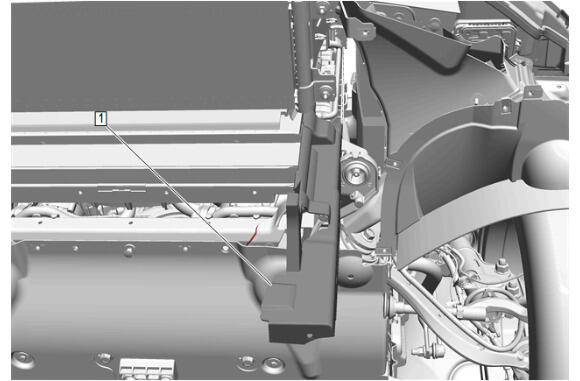

Radiator Air Side Baffle Retainer (1) - Remove [2x]
Radiator Air Side Baffle - Left Side (1) - Remove
