Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5313359Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle (1) - Remove - Radiator Air Upper Baffle Replacement (LSY)

  2. GM5313403Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket - Left Side (2) - Remove - Radiator Upper Bracket Replacement - Left Side (LGY, LSY)

  3. GM5313404Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket - Right Side (3) - Remove - Radiator Upper Bracket Replacement - Right Side (LGY, LSY)

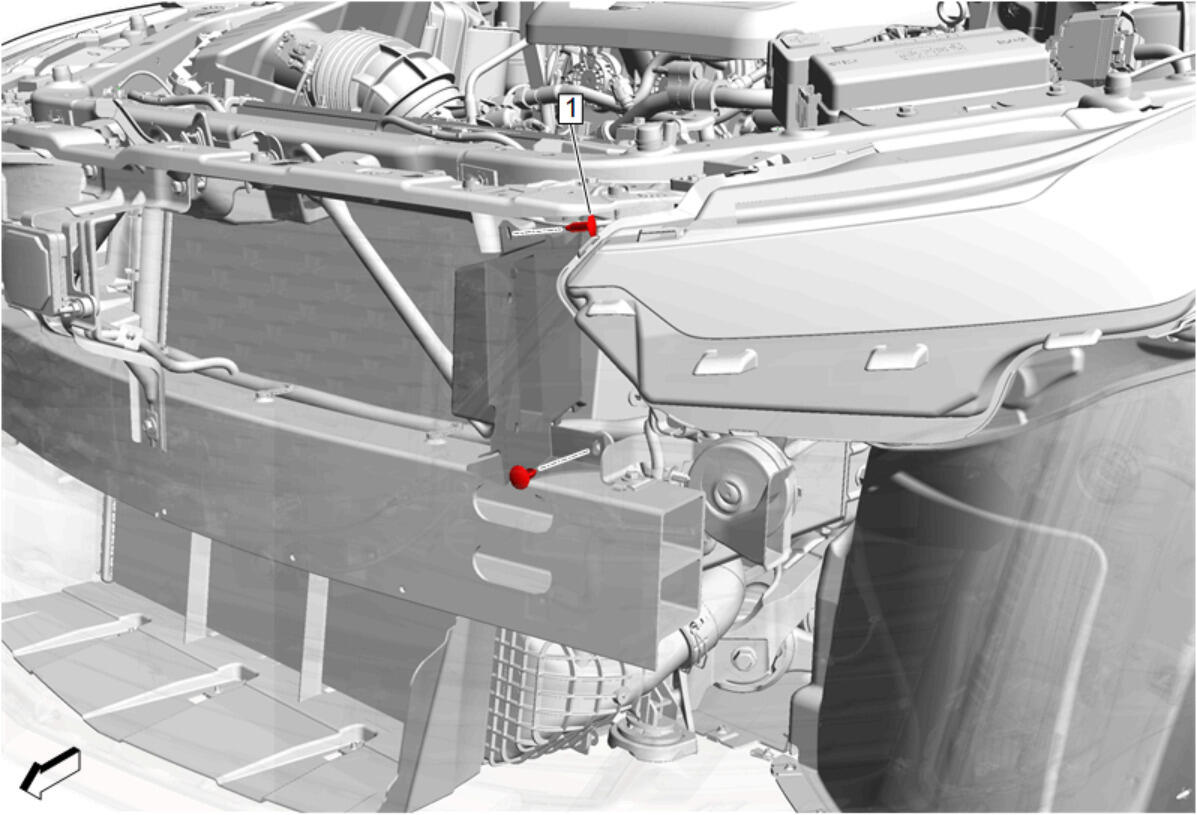

  4. GM5314044Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle Retainer (1) - Remove [2x]

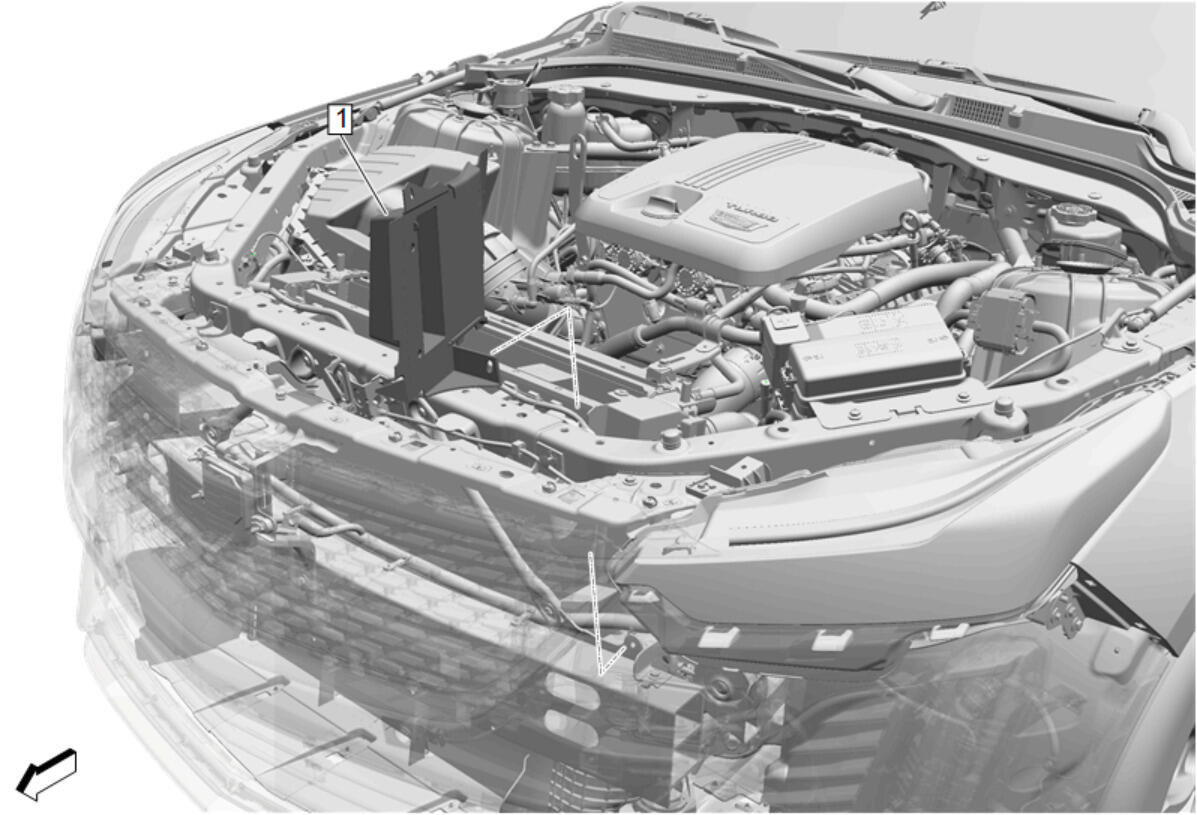

  5. GM5314046Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Upper Baffle (1) - Remove
