Engine Oil Cooler Pipe/Hose Quick Connect Fitting Replacement (LT4)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

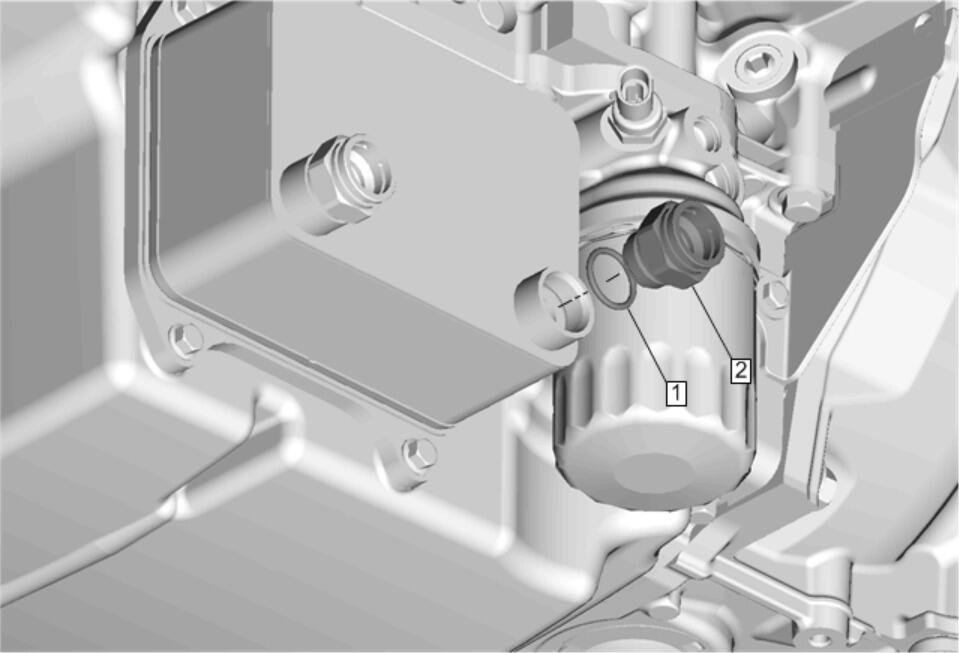

Callout	Component Name
Preliminary Procedures Drain the cooling system. Cooling System Draining and Filling (LT4 Static Fill) Cooling System Draining and Filling (LT4 GE 47716) Engine Oil Cooler Hose/Pipe Replacement (LT4) @Engine Oil Cooler - Disconnect Radiator Outlet Hose Replacement (LT4) @Engine Oil Cooler - Disconnect
1	Seal
2	Engine Oil Cooler Hose Connector CAUTION: Refer to Component Fastener Tightening Caution . Tighten 34 N.m (25 lb ft)

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Cooling System Draining and Filling (LT4 Static Fill) Cooling System Draining and Filling (LT4 GE 47716)
Engine Oil Cooler Hose/Pipe Replacement (LT4) @Engine Oil Cooler - Disconnect
Radiator Outlet Hose Replacement (LT4) @Engine Oil Cooler - Disconnect

Seal

Engine Oil Cooler Hose Connector

CAUTION:

Refer to Component Fastener Tightening Caution .

Tighten
34 N.m (25 lb ft)
