Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

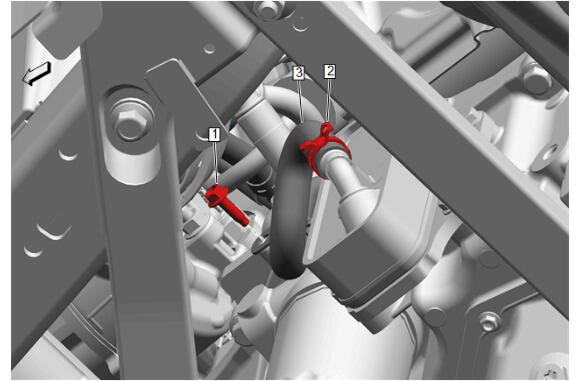

Engine Oil Cooler Inlet Pipe (3) - Install
- Hose Clamp (2) - Engage - Hose Clamp Replacement Guidelines - Spring Type
- Engine Oil Cooler Pipe Bracket Bolt (1) - Install and tighten 10 N.m (89 lb in)

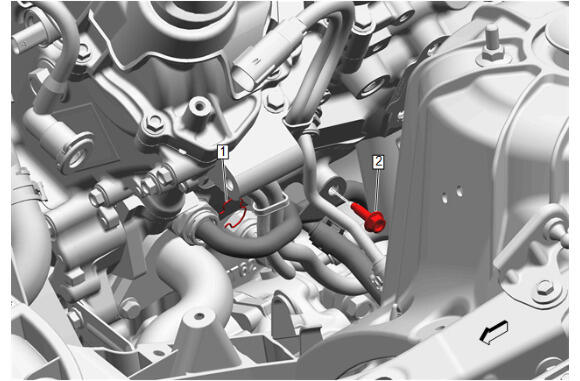

Engine Oil Cooler Pipe Bracket Bolt (2) - Install and tighten 10 N.m (89 lb in)
- Engine Oil Cooler Inlet Pipe Retainer Clip (1) - Install
- Compressor Air Intake Turbocharger-Left Side - Install - Compressor Air Intake Turbocharger Replacement - Left Side
- Fill the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LGY Static Fill) , or Cooling System Draining and Filling (LGY GE 47716) , or Cooling System Draining and Filling (LT4 Static Fill) , or Cooling System Draining and Filling (LT4 GE 47716)
CAUTION:
Refer to Fastener Caution .
