Engine Oil Cooler Coolant Outlet Hose Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

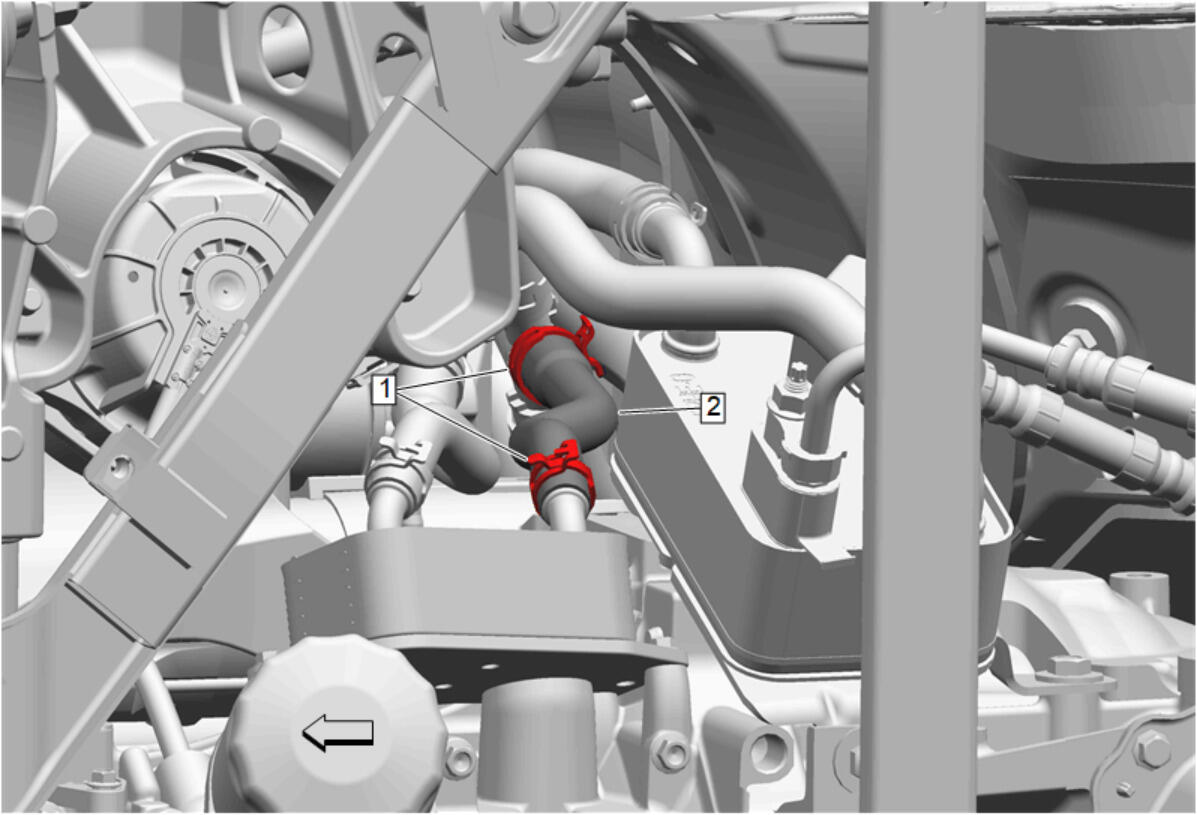

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the cooling system. Cooling System Draining and Filling (LSY GE 47716) Cooling System Draining and Filling (LSY Static Fill) Cooling System Draining and Filling (LGY Static Fill) Cooling System Draining and Filling (LGY GE 47716) Cooling System Draining and Filling (LT4 Static Fill) Cooling System Draining and Filling (LT4 GE 47716)
1	Hose Clamp [2x] Hose Clamp Replacement Guidelines - Spring Type
2	Engine Oil Cooler Coolant Outlet Hose Fill the cooling system to the proper level. Cooling System Draining and Filling (LSY GE 47716) Cooling System Draining and Filling (LSY Static Fill) Cooling System Draining and Filling (LGY Static Fill) Cooling System Draining and Filling (LGY GE 47716) Cooling System Draining and Filling (LT4 Static Fill) Cooling System Draining and Filling (LT4 GE 47716) Start the engine and check for coolant leaks.
