Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill)
- Front Wheelhouse Liner- Right Side - Reposition - Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (Blackwing)
- Charge Air Cooler Inlet Air Tube@Charge Air Cooler - Remove - Charge Air Cooler Inlet Air Tube Replacement
- Engine Coolant Temperature Sensor Electrical Connector - Disconnect

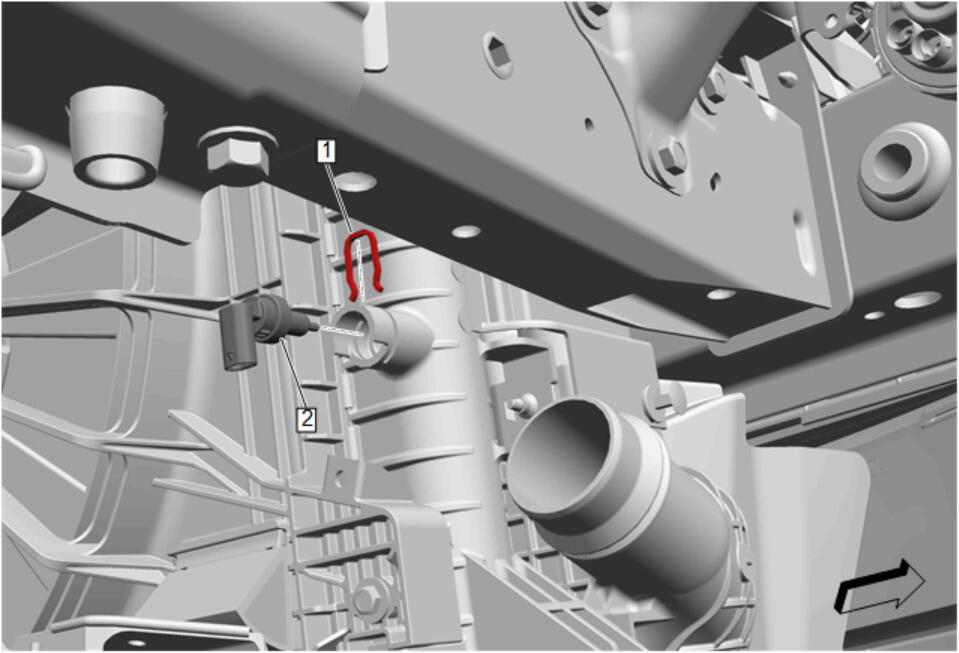

Engine Coolant Temperature Sensor Retainer (1) - Remove
- Engine Coolant Temperature Sensor (2) - Remove
