Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Heater Wiring Extension Harness (3) - Install
Engine Coolant Heater Cord Retainer (2) @Front Bumper Impact Bar - Install [3x]
Engine Coolant Heater Cord Retainer (1) @Front Compartment Inner Side Rail - Install
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Heater Cord Retainer (1) @Engine Control Module Bracket - Install [2x]
Engine Coolant Heater Cord Retainer (2) @Front Compartment Inner Side Rail - Install
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Front Lower Baffle (1) - Install - Radiator Air Front Upper Baffle Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

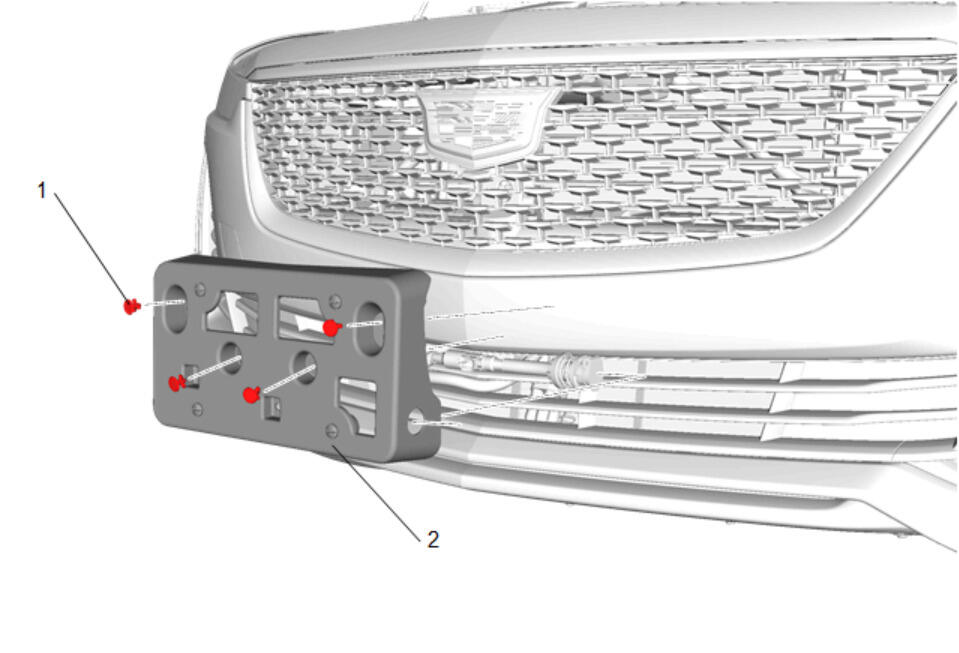

Front License Plate Bracket (2) - Install - Front License Plate Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Heater Cord Retainer (2) @Air Conditioning Refrigerant Heat Exchanger - Install
Engine Coolant Heater Cord Retainer (1) @Engine Wiring Harness - Install
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Heater Cord (1) @Engine Coolant Heater (2) - Connect
Courtesy of GENERAL MOTORS COMPANY

Generator (1) - Install - Generator Replacement (LSY)
Fill the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill)
Inspect for coolant leaks.
