Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Cooling System Draining and Filling (LGY Static Fill) , or Cooling System Draining and Filling (LGY GE 47716)
  2. Turbocharger Heat Shield-Upper Left (1) - Remove - Turbocharger Heat Shield Replacement - Left Side Upper (LGY)
  3. GM5501249Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Heater Cord Retainer (1) @Engine Wiring Harness Bracket - Remove

  4. Engine Coolant Heater Cord Connector Retainer (2) @Engine Coolant Heater - Release
  5. Engine Coolant Heater Cord (3) @Engine Coolant Heater - Disconnect

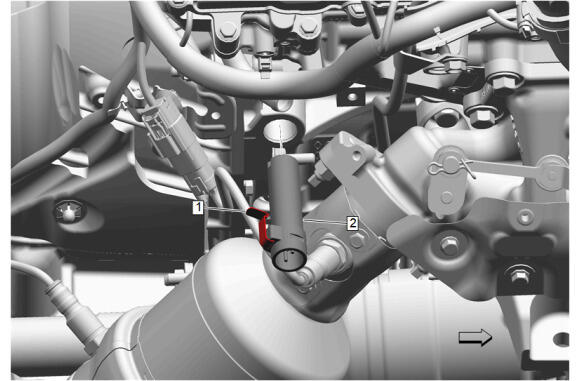

  6. GM5501254Courtesy of GENERAL MOTORS COMPANY

    Release the engine coolant heater retainer (1).

  7. Engine Coolant Heater (2) - Remove
