Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Cooling System Draining and Filling (LGY Static Fill) , or Cooling System Draining and Filling (LGY GE 47716)
- Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement

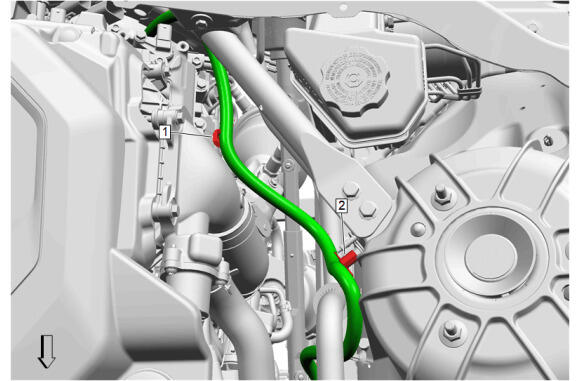

Engine Coolant Heater Cord Retainer (1) @Engine Wiring Harness Bracket - Remove
- Engine Coolant Heater Cord Connector Retainer (2) @Engine Coolant Heater - Release
- Engine Coolant Heater Cord (3) @Engine Coolant Heater - Disconnect

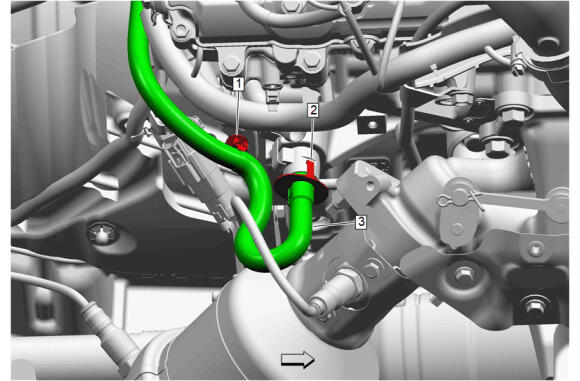

Engine Coolant Heater Cord Retainer (1) @Camshaft Cover - Remove
- Engine Coolant Heater Cord Retainer (2) @Engine Wiring Harness Bracket - Remove
- Engine Coolant Heater Cord Retainer (3) @Engine Wiring Harness - Remove [2x]

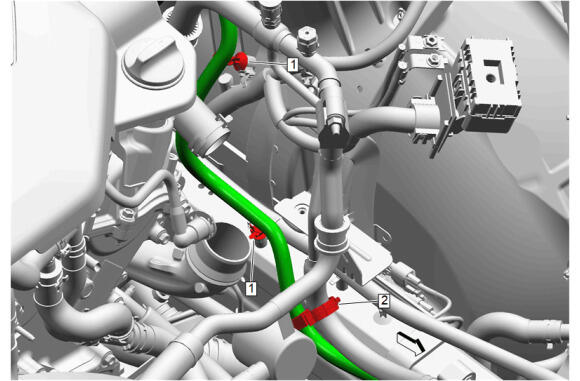

Engine Coolant Heater Cord Retainer (1) @Engine Wiring Harness Bracket - Remove
- Engine Coolant Heater Cord Retainer (2) @Air Conditioning Refrigerant Heat Exchanger - Remove

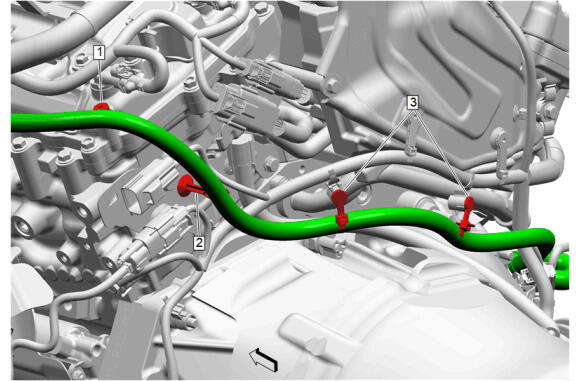

Engine Coolant Heater Cord Retainer (1) @Forward Lamp Wiring Harness - Remove [2x]
- Engine Coolant Heater Cord Retainer (2) @Air Conditioning Refrigerant Heat Exchanger - Remove
Engine Coolant Heater Cord Retainer (1) @Front Bumper Energy Absorber - Remove [2x]
Front License Plate Bracket (2) - Remove - Front License Plate Bracket Replacement
Radiator Air Front Lower Baffle (1) - Remove - Radiator Air Front Upper Baffle Replacement (LGY)

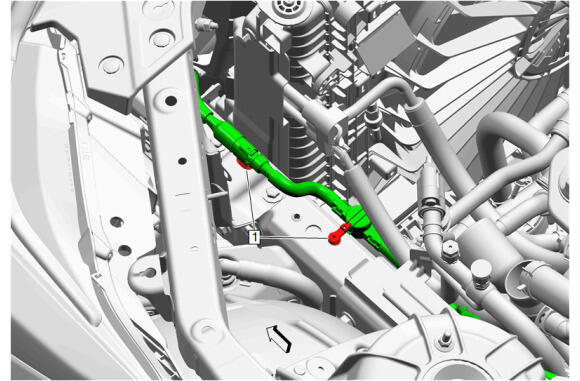

Engine Coolant Heater Cord Retainer (1) @Front Compartment Inner Side Rail - Remove
- Engine Coolant Heater Cord Retainer (2) @Front Bumper Impact Bar - Remove [3x]
- Engine Coolant Heater Wiring Extension Harness (3) - Remove
