Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Engine Cooler Fan (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

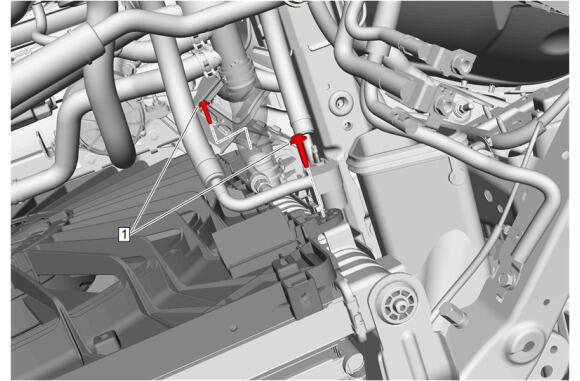

Engine Coolant Fan Bolt (1) - Install and tighten [2x] 7 N.m (62 lb in)
Courtesy of GENERAL MOTORS COMPANY

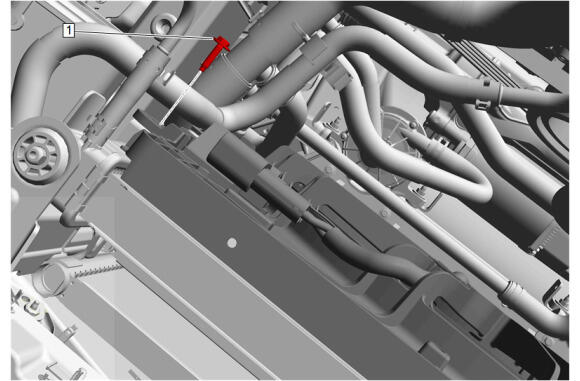

Engine Coolant Fan Bolt (1) - Install and tighten 7 N.m (62 lb in)
Courtesy of GENERAL MOTORS COMPANY

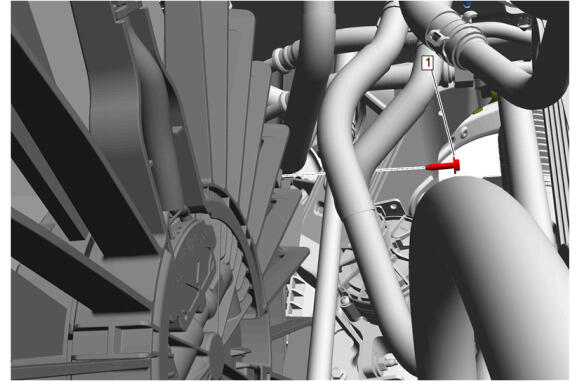

Engine Coolant Fan Bolt (1) - Install and tighten 7 N.m (62 lb in)
Courtesy of GENERAL MOTORS COMPANY

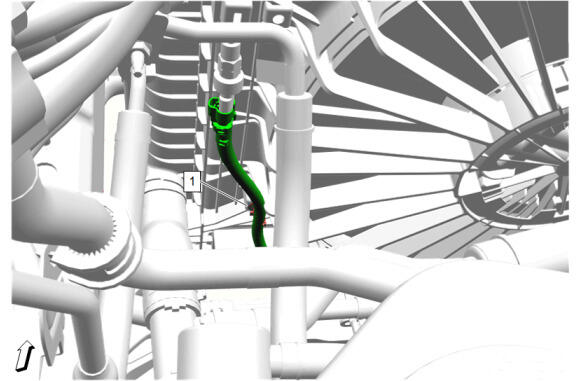

Air Conditioning Compressor Hose (2) @Air Conditioning Condenser - Install - Air Conditioning Compressor Hose Replacement
Courtesy of GENERAL MOTORS COMPANY

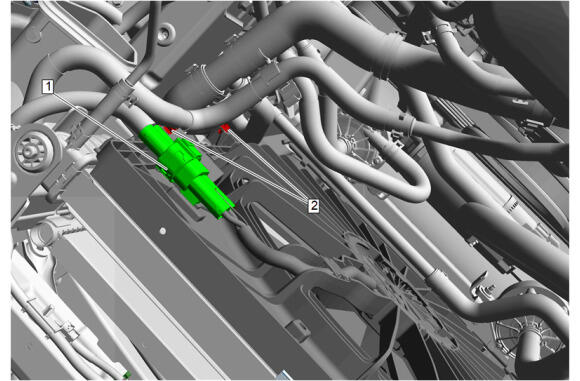

Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Retainer (2) - Install [2x]
Connect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

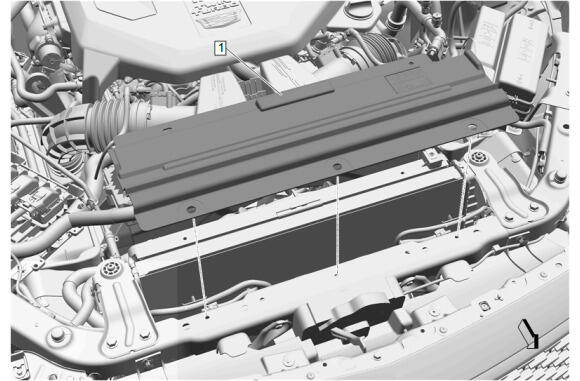

Radiator Air Upper Baffle (1) - Install
Courtesy of GENERAL MOTORS COMPANY

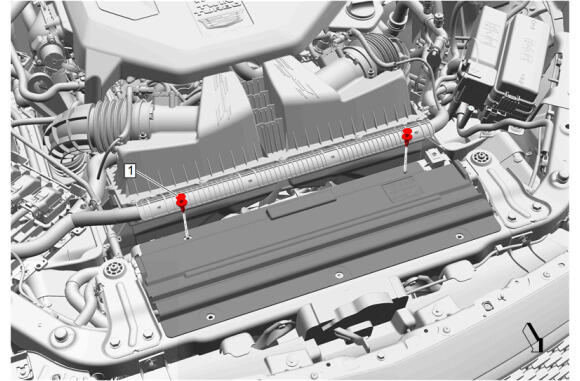

Radiator Air Upper Baffle Retainer (1) - Install [2x]
Front Compartment Front Sight Shield - Install - Front Compartment Front Sight Shield Replacement
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Assembly (1) - Install - Air Cleaner Assembly Replacement
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Recharge the refrigerant. Refrigerant Recovery and Recharging
