Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Intake Manifold Cover - Remove - Intake Manifold Cover Replacement
Drain the charge air cooling system. Charge Air Cooling System Draining and Filling (LT4)
Drain the cooling system. Cooling System Draining and Filling (LT4 Static Fill) , or Cooling System Draining and Filling (LT4 GE 47716)
Recover the refrigerant. Refrigerant Recovery and Recharging
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct (1) - Remove - Air Cleaner Outlet Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

Radiator Surge Tank Inlet Hose (2) @Engine Radiator - Remove - Radiator Surge Tank Inlet Hose Replacement (LT4 Radiator Surge Tank to Radiator Surge Tank Outlet Pipe) , or Radiator Surge Tank Inlet Hose Replacement (LT4 From Radiator Surge Tank Outlet Pipe to Engine Radiator and Water Outlet)
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Assembly (1) - Remove - Air Cleaner Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Remove - Front Bumper Fascia Replacement (without Blackwing) , or Front Bumper Fascia Replacement (with Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Upper Baffle (1) - Remove - Radiator Air Upper Baffle Replacement (LT4)
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Side Upper Baffle - Right Side (1) - Remove - Radiator Air Side Upper Baffle Replacement - Right Side (LT4)
Courtesy of GENERAL MOTORS COMPANY

Intake Air Duct (1) - Remove - Intake Air Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

Retainer (2) - Disengage
Remove the charge air cooler coolant hose (1) from the engine radiator intercooler heat exchanger.
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Front Inlet Duct- Left Side (1) - Remove - Auxiliary Radiator Front Inlet Duct Replacement - Left Side (LT4)
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Disengage
Remove the auxiliary radiator outlet hose (2) from the engine radiator intercooler heat exchanger.
Courtesy of GENERAL MOTORS COMPANY

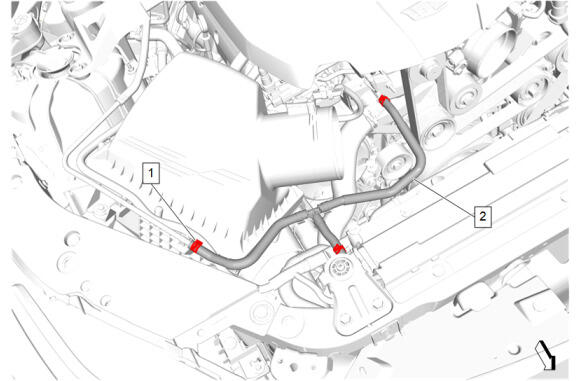

Charge Air Bypass Valve Tube Clip (1) @Cooling Fan Motor - Remove [2x]
Charge Air Cooler Coolant Hose (2) - Reposition away
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
Radiator Outlet Hose (2) @Engine Radiator - Remove
Electrical Connector (3) @Cooling Fan Motor - Disconnect
Courtesy of GENERAL MOTORS COMPANY

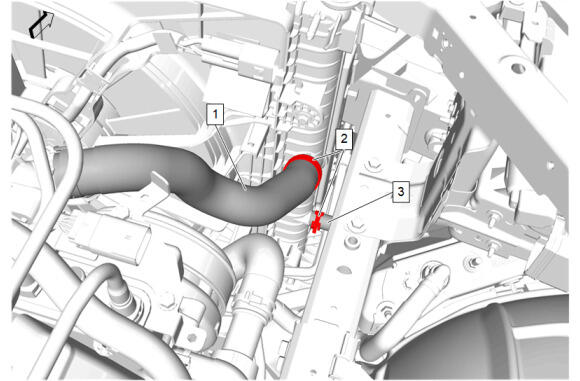

Radiator Inlet Hose Clamp (2) - Disengage [2x] - Hose Clamp Replacement Guidelines - Spring Type
Remove the radiator inlet hose (1) from the rear of the engine radiator.
Remove the radiator inlet hose (3) from the side of the engine radiator.
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (2) @Air Conditioning Condenser - Remove - Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose Replacement (LT4)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Refrigerant Heat Exchanger (1) @Air Conditioning Condenser - Remove - Air Conditioning Refrigerant Heat Exchanger Replacement (LT4)
Courtesy of GENERAL MOTORS COMPANY

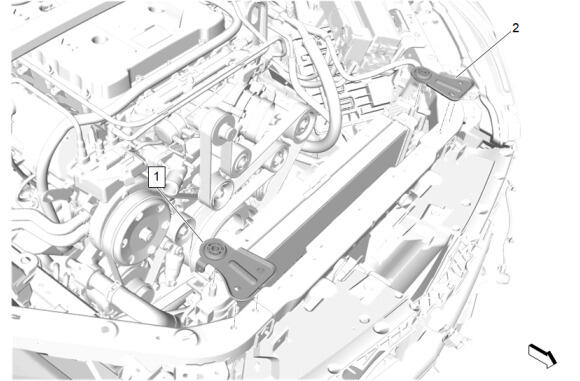

Radiator Upper Bracket - Right Side (1) - Remove - Radiator Upper Bracket Replacement - Right Side (LT4)
Radiator Upper Bracket - Left Side (2) - Remove - Radiator Upper Bracket Replacement - Left Side (LT4)
Courtesy of GENERAL MOTORS COMPANY

Remove the engine coolant fan module radiator (1) with assistance.
