Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill)
Engine Coolant Air Bleed Pipe (3) @Auxiliary Water Pump Inlet Pipe - Remove - Engine Coolant Air Bleed Pipe Replacement (LSY Auxiliary Water Pump Inlet Pipe to Engine Coolant Air Bleed Hose) , or Engine Coolant Air Bleed Pipe Replacement (LSY Engine Block to Engine Coolant Flow Control Valve)
Engine Coolant Heater Exhaust Pipe (3) - Remove - Engine Coolant Heater Exhaust Pipe Replacement

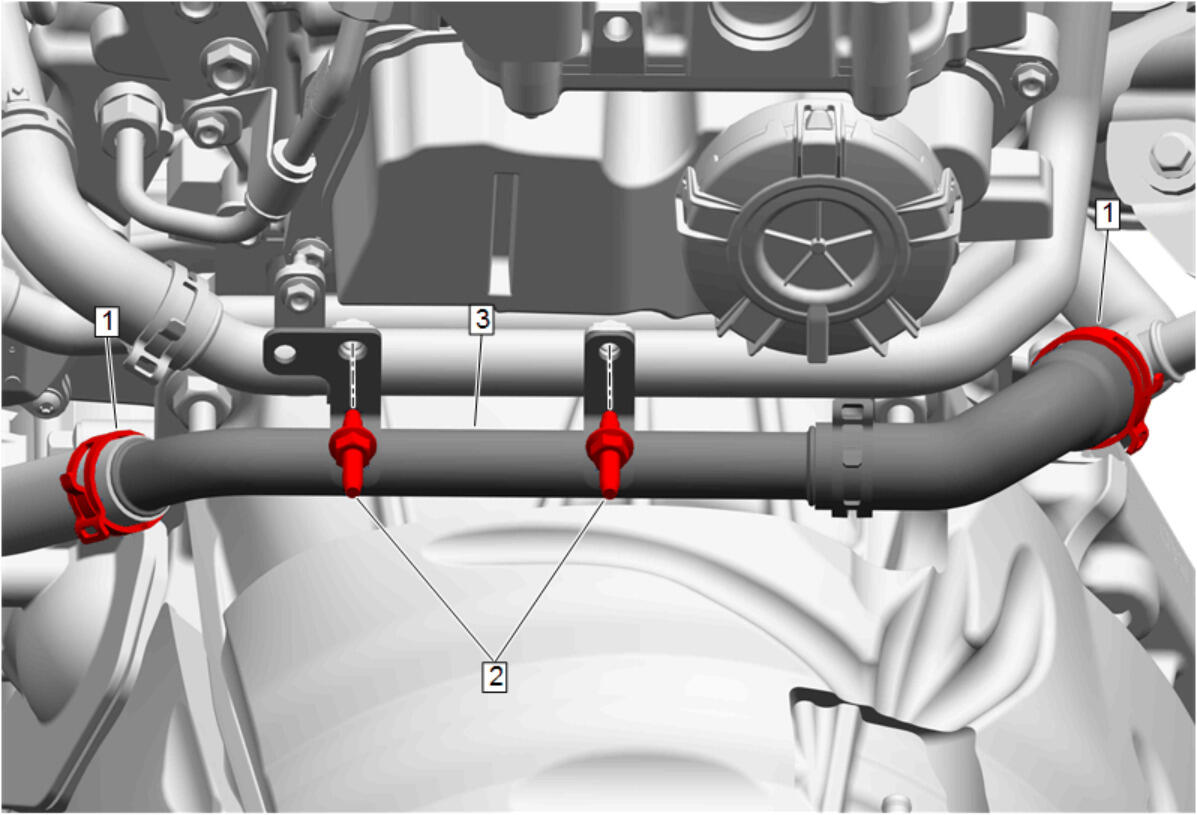

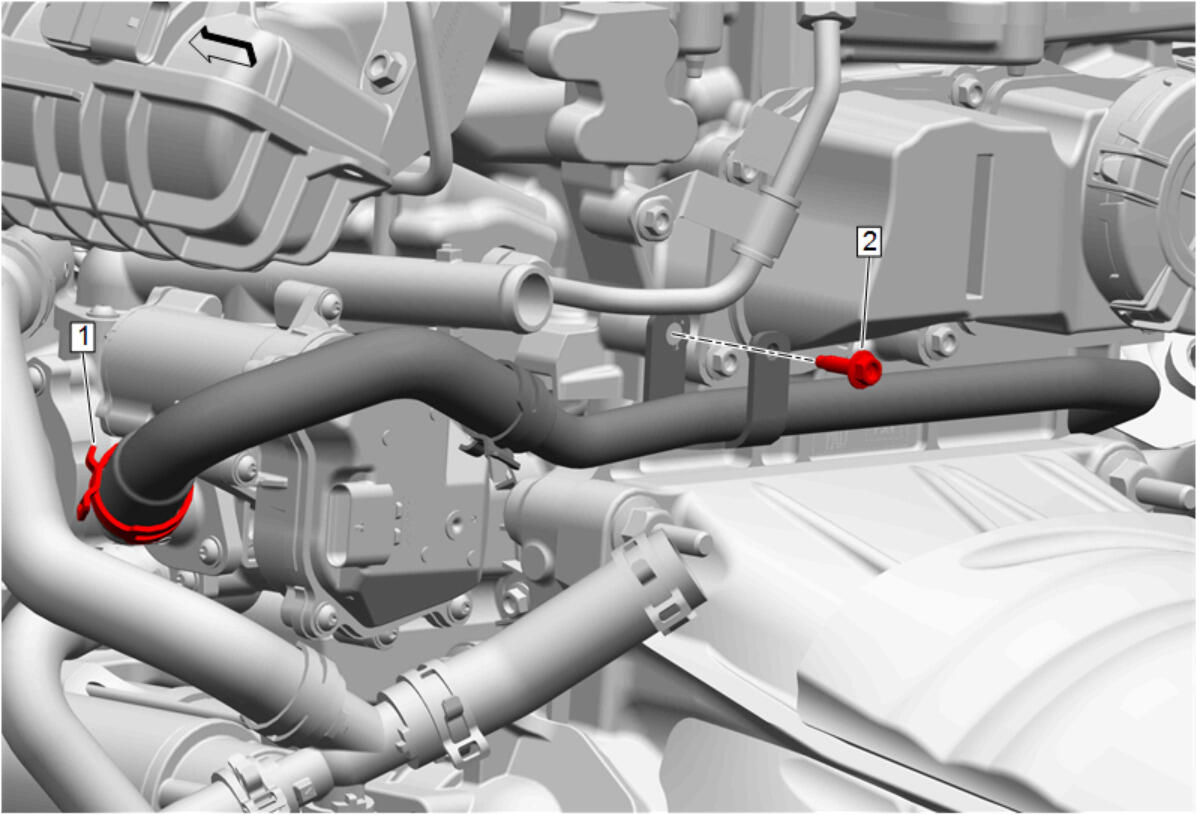

Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Engine Coolant Air Bleed Pipe Bolt (2) - Remove
Catalytic Converter Heat Shield (1) - Remove - Catalytic Converter Heat Shield Replacement (LSY, LGY) , or

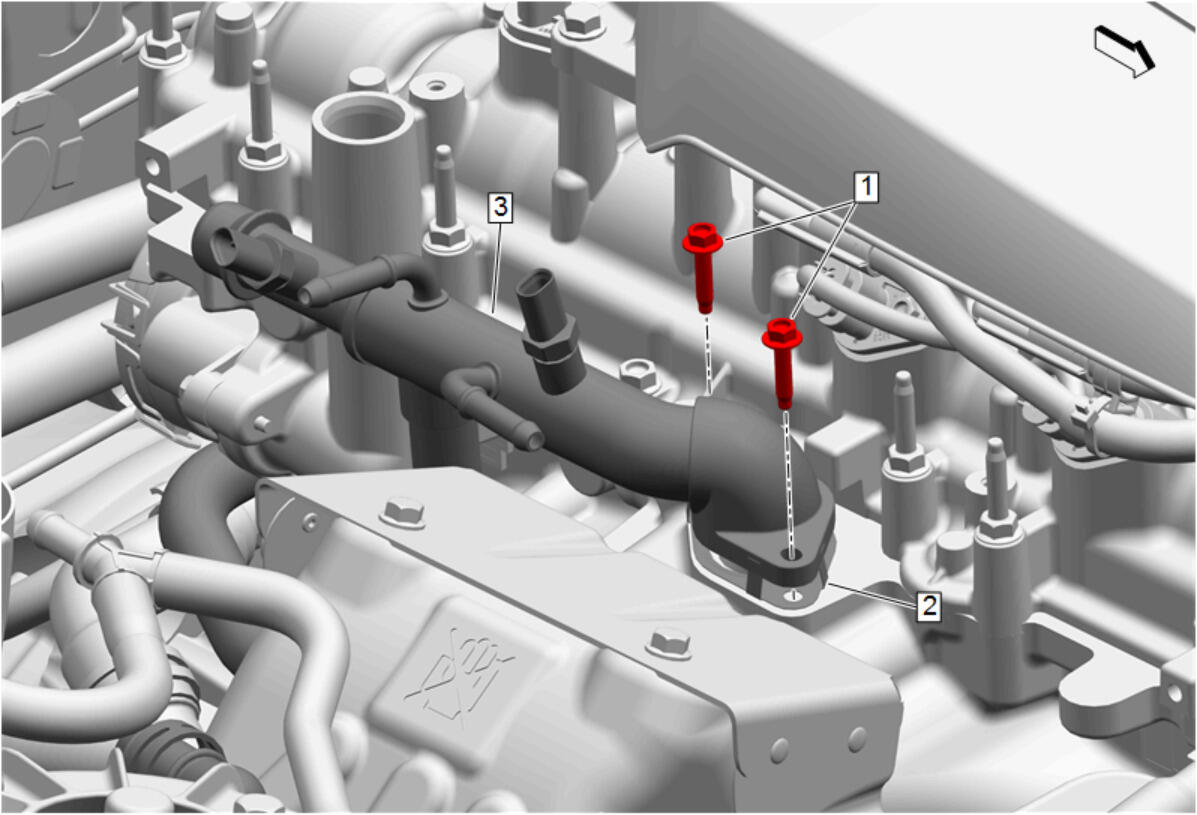

Engine Coolant Air Bleed Pipe Bolt (1) - Remove [2x]
Engine Coolant Air Bleed Pipe (1) - Remove
- Turbocharger Oil Feed Pipe Gasket (2) - Remove and DISCARD
