Draining Procedure (Engine Radiator)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
With a pressurized cooling system, the coolant temperature in the radiator can be considerably higher than the boiling point of the solution at atmospheric pressure. Removal of the surge tank cap, while the cooling system is hot and under high pressure, causes the solution to boil instantaneously with explosive force. This will cause the solution to spew out over the engine, the fenders, and the person removing the cap. Serious bodily injury may result.

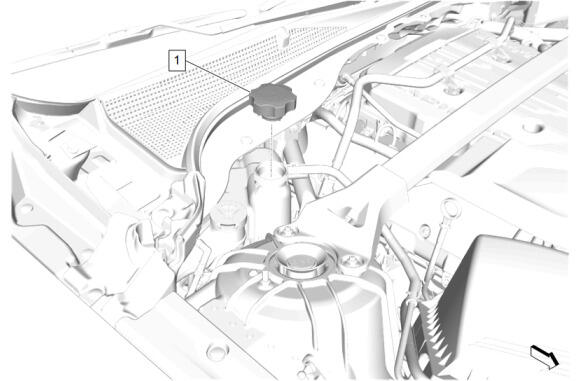

Radiator Surge Tank Cap (1) - Remove
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Front Bumper Fascia Lower Reinforcement- Right Side - Remove - Front Bumper Fascia Lower Reinforcement Replacement (Blackwing)
- Place a drain pan under the vehicle.
- Attach a rubber hose to the radiator drain port to guide the coolant into the drain pan.
Rotate the radiator drain cock counterclockwise to open. (1)
- Drain the cooling system.
- Rotate the radiator drain cock clockwise to close. (1)
- Remove the drain hose from the radiator drain port.
- Remove the drain pan.
- Front Bumper Fascia Lower Reinforcement- Right Side - Install - Front Bumper Fascia Lower Reinforcement Replacement (Blackwing)
- Lower the vehicle.
- Inspect the coolant.
- If the coolant is discolored, perform the flushing procedure. Flushing
