Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Cooling System Draining and Filling (LT4 Static Fill) , or Cooling System Draining and Filling (LT4 GE 47716)
Drain the charge air cooling system. Charge Air Cooling System Draining and Filling (LT4)
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct (1) - Remove - Air Cleaner Outlet Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Assembly (1) - Remove - Air Cleaner Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

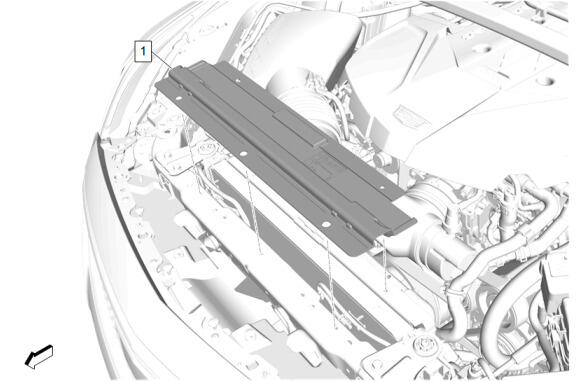

Radiator Air Upper Baffle (1) - Remove - Radiator Air Upper Baffle Replacement (LT4)
Courtesy of GENERAL MOTORS COMPANY

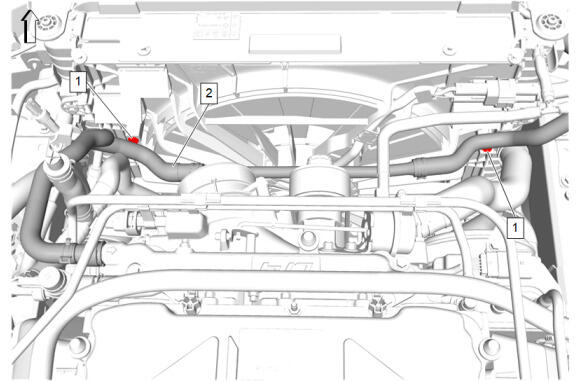

Charge Air Bypass Valve Tube Clip (1) @Cooling Fan Motor - Remove [2x]
Charge Air Cooler Coolant Hose (2) - Reposition away
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Coolant Pump (2) - Remove - Charge Air Cooler Coolant Pump Replacement (LT4)
Courtesy of GENERAL MOTORS COMPANY

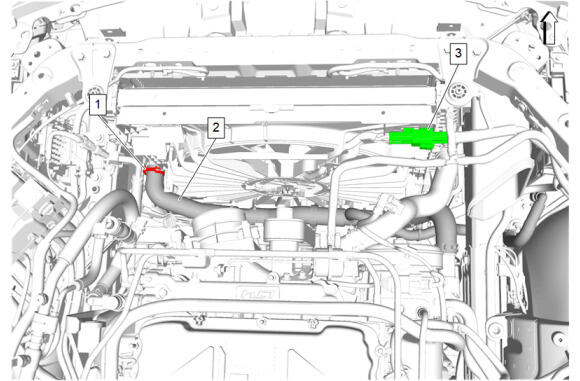

Radiator Outlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
Radiator Outlet Hose (2) @Engine Radiator - Remove
Electrical Connector (3) @Cooling Fan Motor - Disconnect
Courtesy of GENERAL MOTORS COMPANY

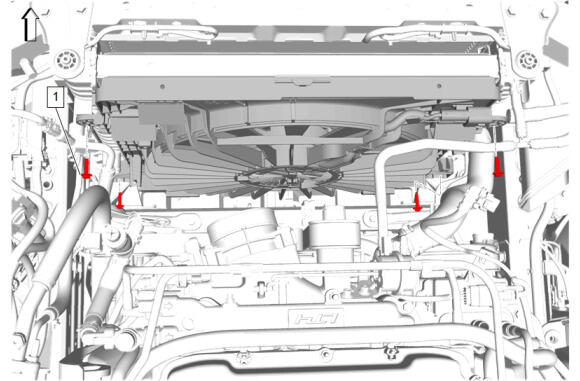

Engine Coolant Fan Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

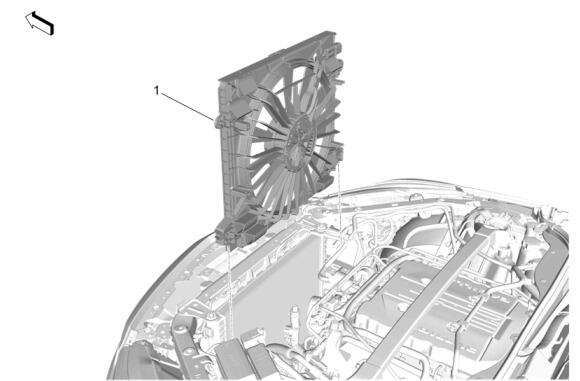

Cooling Fan Motor (1) - Remove
