Draining Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

To avoid being burned, do not remove the radiator cap or surge tank cap while the engine is hot. The cooling system will release scalding fluid and steam under pressure if radiator cap or surge tank cap is removed while the engine and radiator are still hot.

NOTE:

Make sure the charge air cooling system is cool and that the pump is not activated.

Courtesy of GENERAL MOTORS COMPANY

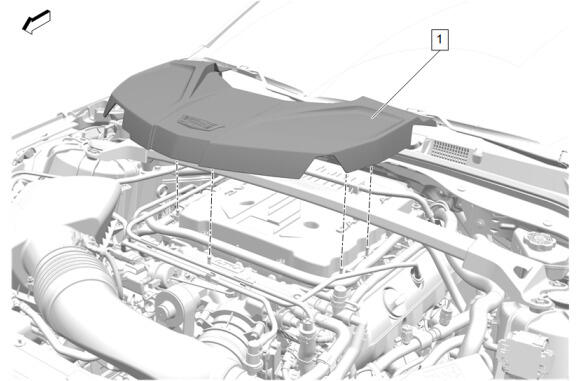

Intake Manifold Cover (1) - Remove - Intake Manifold Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

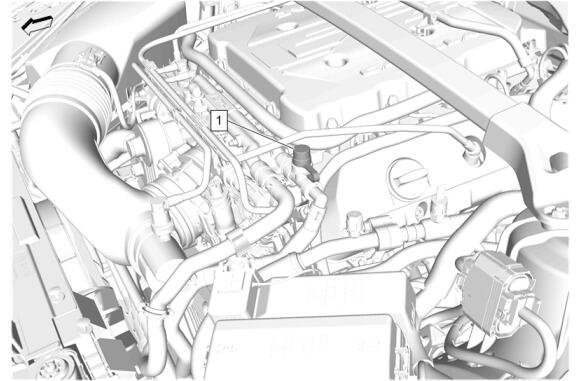

Charge Air Cooler Coolant Filler Cap (1) - Remove
Place an absorbent shop cloth around the turbocharger coolant feed pipe fitting to capture any coolant loss.
Courtesy of GENERAL MOTORS COMPANY

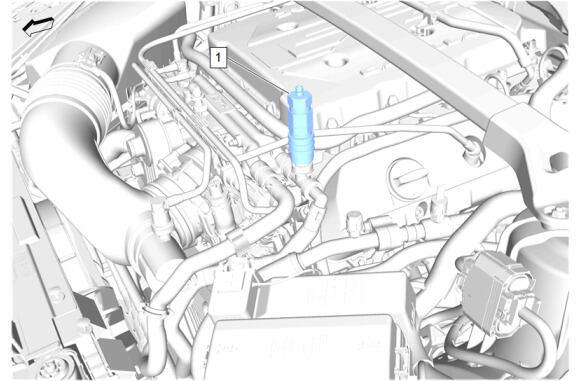

Install the GE-47716-30A Vac-N-Fill Adapter (1) to the turbocharger coolant feed pipe fitting (2) to allow the system to vent.
Place a drain pan under the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Remove the auxiliary radiator outlet hose (2) from the left side charge air cooler and rotate downward allowing the engine radiator (intercooler heat exchanger) to drain. Auxiliary Radiator Outlet Hose Replacement (LT4)
Courtesy of GENERAL MOTORS COMPANY

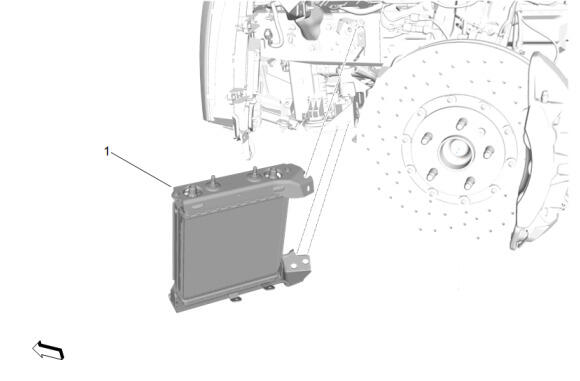

Charge Air Cooler- Left Side (1) - Remove - Charge Air Cooler Replacement - Left Side (LT4)
Invert the left side charge air cooler (1) and allow the remaining coolant to drain into the drain pan.
Charge Air Cooler- Left Side (1) - Install - Charge Air Cooler Replacement - Left Side (LT4)
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Outlet Hose (2) @Charge Air Cooler- Left Side - Install - Auxiliary Radiator Outlet Hose Replacement (LT4)
