Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Drain the charge air cooling system. Charge Air Cooling System Draining and Filling (LT4)
Remove the left front tire and wheel assembly. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Front Outlet Duct- Left Side (1) - Remove - Auxiliary Radiator Front Outlet Duct Replacement - Left Side (LT4)
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Remove - Front Bumper Fascia Replacement (without Blackwing) , or Front Bumper Fascia Replacement (with Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Radiator Inlet Hose (2) @Charge Air Cooler- Left Side - Remove - Radiator Inlet Hose Replacement (LT4 Charge Air Cooler - Left Side to Charge Air Cooler Coolant Pump) , or Radiator Inlet Hose Replacement (LT4 Charge Air Cooler - Right Side to Engine Radiator)
Courtesy of GENERAL MOTORS COMPANY

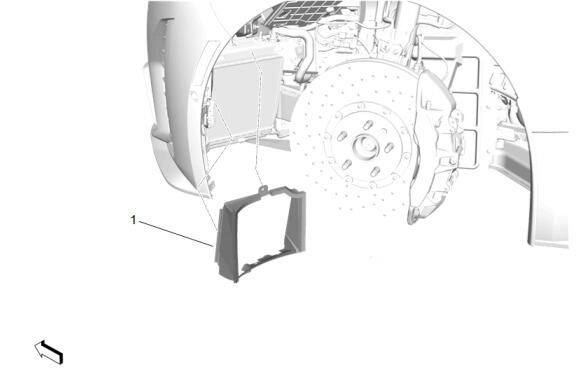

Auxiliary Radiator Front Inlet Duct- Left Side (1) - Remove - Auxiliary Radiator Front Inlet Duct Replacement - Left Side (LT4)
Courtesy of GENERAL MOTORS COMPANY

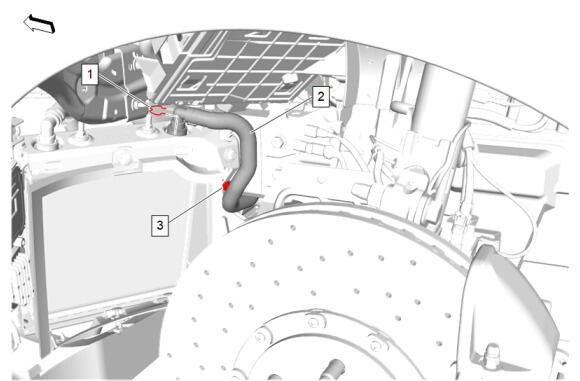

Auxiliary Radiator Outlet Hose (2) @Charge Air Cooler- Left Side - Remove - Auxiliary Radiator Outlet Hose Replacement (LT4)
Courtesy of GENERAL MOTORS COMPANY

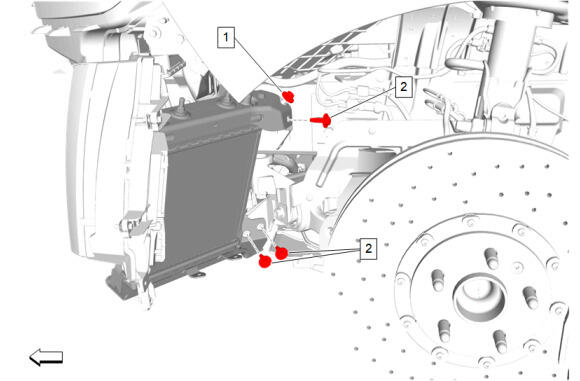

Auxiliary Radiator Bracket Bolt (2) - Remove [3x]
Auxiliary Radiator Bracket Nut (1) - Loosen
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Upper Insulator (3) - Remove [2x]
Auxiliary Radiator Bracket Nut (2) - Remove [2x]
Auxiliary Radiator Bracket Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Bracket- Upper (1) - Remove
Remove the charge air cooler (2) from the auxiliary radiator bracket (3).
