Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

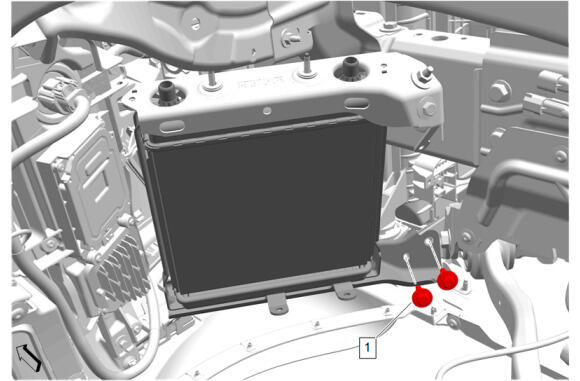

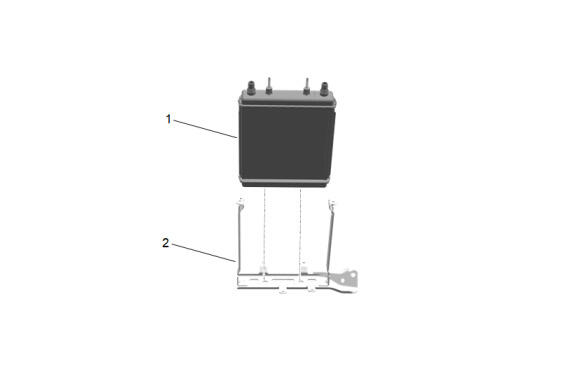

Auxiliary Radiator Bracket- Lower (2) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

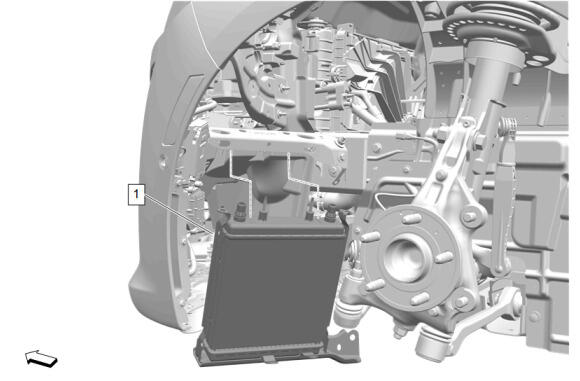

Charge Air Cooler (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

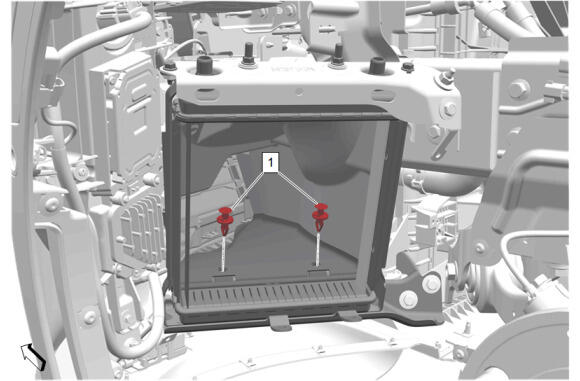

Charge Air Cooler Bracket Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

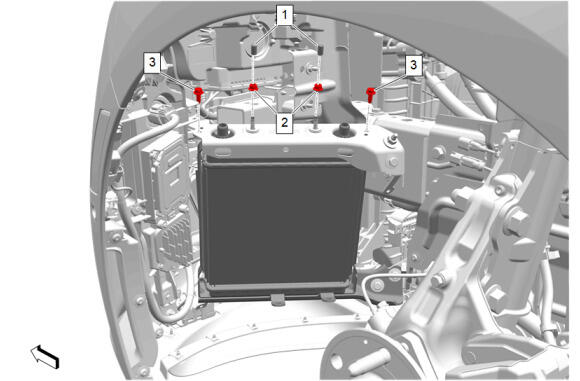

Auxiliary Radiator Bracket Bolt (3) - Install and tighten [2x] 9 N.m (80 lb in)
Auxiliary Radiator Bracket Nut (2) - Install and tighten [2x] 5.5 N.m (49 lb in)
Charge Air Cooler Upper Insulator (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The retainers (1) are installed from behind the charge air cooler.

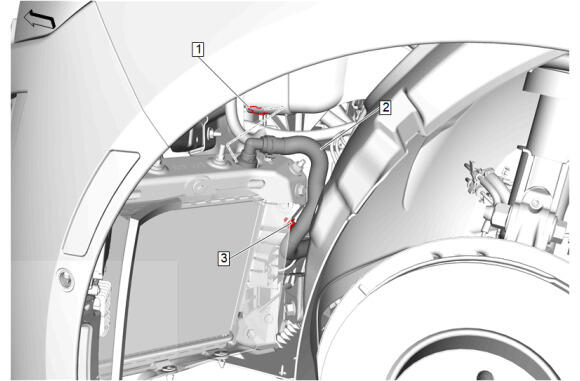

Auxiliary Radiator Front Inlet Duct Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

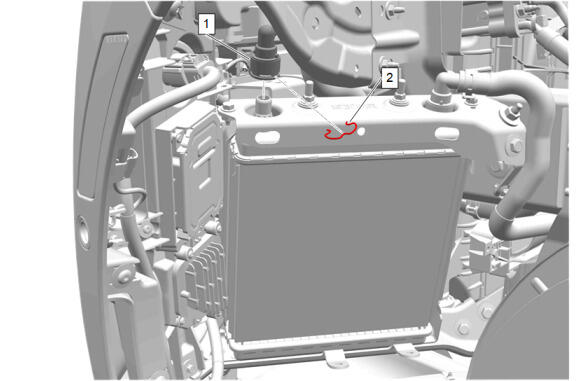

Auxiliary Radiator Outlet Hose (1) @Charge Air Cooler - Install - Auxiliary Radiator Outlet Hose Replacement (LGY)
Auxiliary Radiator Inlet Hose Retainer (2) Install
Courtesy of GENERAL MOTORS COMPANY

Radiator Inlet Hose (2) @Charge Air Cooler - Install - Radiator Inlet Hose Replacement (LGY) , or Radiator Inlet Hose Replacement (RWD with LGY Radiator Inlet Pipe to Charge Air Cooler)
Install the front bumper fascia. Front Bumper Fascia Replacement (without Blackwing) , or Front Bumper Fascia Replacement (with Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Front Outlet Duct- Left Side (1) - Install - Auxiliary Radiator Front Outlet Duct Replacement - Left Side (LGY)
Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
Fill the charge air cooling system. Charge Air Cooling System Draining and Filling (LGY)
Start the engine and check for coolant leaks.
