Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Intake Manifold Cover - Remove - Intake Manifold Cover Replacement
Drain the charge air cooling system. Charge Air Cooling System Draining and Filling (LT4)
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct (1) - Remove - Air Cleaner Outlet Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Assembly (1) - Remove - Air Cleaner Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Remove - Front Bumper Fascia Replacement (without Blackwing) , or Front Bumper Fascia Replacement (with Blackwing)
Courtesy of GENERAL MOTORS COMPANY

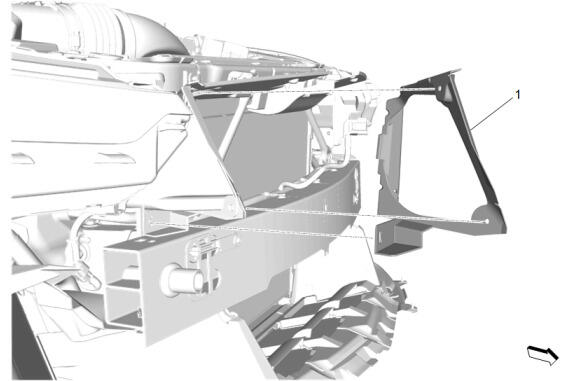

Radiator Air Side Upper Baffle - Right Side (1) - Remove - Radiator Air Side Upper Baffle Replacement - Right Side (LT4)
Courtesy of GENERAL MOTORS COMPANY

Intake Air Duct (1) - Remove - Intake Air Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

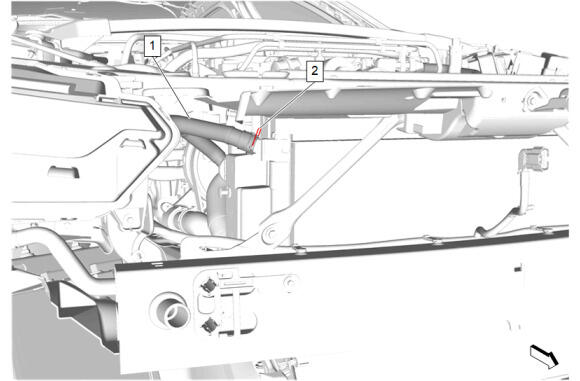

Retainer (2) - Disengage
Remove the charge air cooler coolant hose (1) from the engine radiator intercooler heat exchanger.
Courtesy of GENERAL MOTORS COMPANY

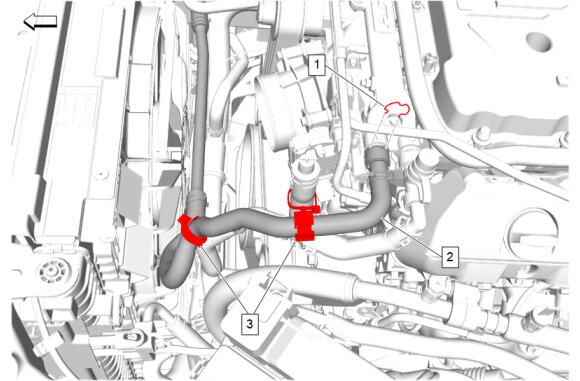

Charge Air Bypass Regulator Solenoid Valve Inlet Tube Clip (3) - Remove [2x]
Charge Air Cooler Retainer (1) - Remove
Charge Air Cooler Coolant Hose (2) @Charge Air Cooler Front Manifold - Remove
Courtesy of GENERAL MOTORS COMPANY

Charge Air Bypass Valve Tube Clip (1) @Cooling Fan Motor - Remove [2x]
Charge Air Cooler Coolant Hose (2) - Remove
