Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the charge air cooling system. Charge Air Cooling System Draining and Filling (LGY)

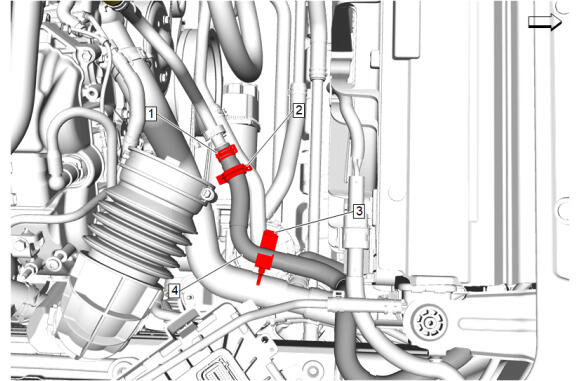

Air Cleaner Assembly (1) - Remove - Air Cleaner Assembly Replacement
Charge Air Cooler Coolant Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Charge Air Bypass Valve Vacuum Hose Clip (2) - Remove
- Charge Air Bypass Regulator Solenoid Valve Inlet Tube Clip (3) - Remove
- Charge Air Cooler Coolant Hose (4) @Charge Air Cooler Coolant Outlet Pipe - Remove

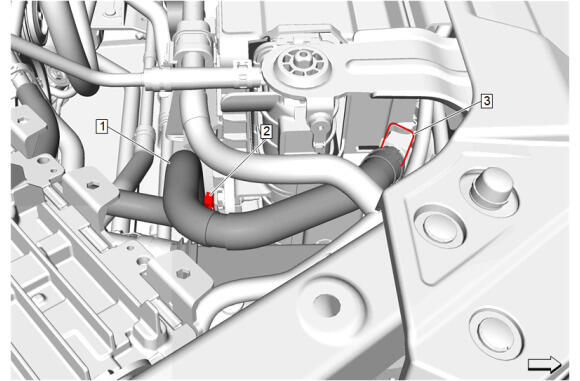

Turbocharger Coolant Feed Hose Clip (2) - Remove
- Retainer (3) - Disengage
- Charge Air Cooler Coolant Hose (1) - Remove
