Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Cooling System Draining and Filling (LGY Static Fill) , or Cooling System Draining and Filling (LGY GE 47716)
Air Cleaner Assembly (1) - Remove - Air Cleaner Assembly Replacement

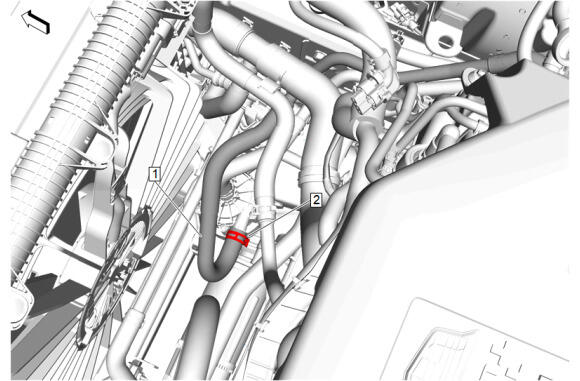

Heater Outlet Pipe (1) @Auxiliary Water Pump - Remove - Heater Outlet Pipe Replacement (AWD with LGY from Auxiliary Water Pump to Heater Outlet Hose at Radiator Surge Tank) , or Heater Outlet Pipe Replacement (AWD with LGY from Auxiliary Water Pump to Auxiliary Heater Outlet Hose)

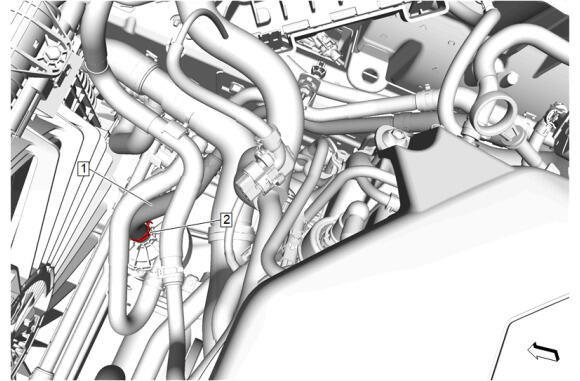

Heater Outlet Pipe (1) @Auxiliary Water Pump - Remove - Heater Outlet Pipe Replacement (AWD with LGY from Auxiliary Water Pump to Heater Outlet Hose at Radiator Surge Tank) , or Heater Outlet Pipe Replacement (AWD with LGY from Auxiliary Water Pump to Auxiliary Heater Outlet Hose)

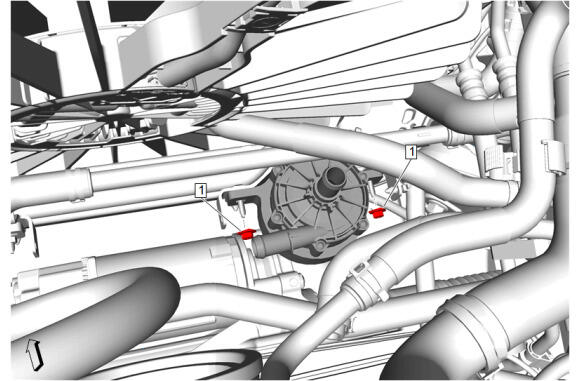

Heater Water Auxiliary Pump Bracket Nut (1) - Remove [2x]

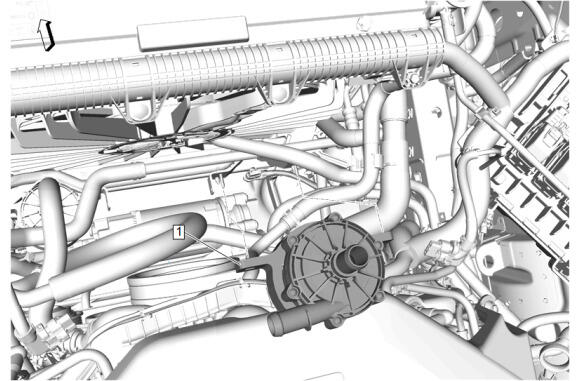

Auxiliary Water Pump (1) - Remove
- Disconnect the electrical connector.
