Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

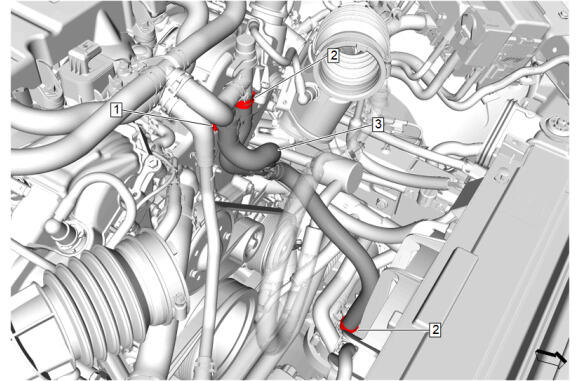

Auxiliary Water Pump (2) - Install
Connect the electrical connector.

CAUTION:

Refer to Fastener Caution .

Charge Air Cooler Bracket Nut (1) - Install and tighten [2x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

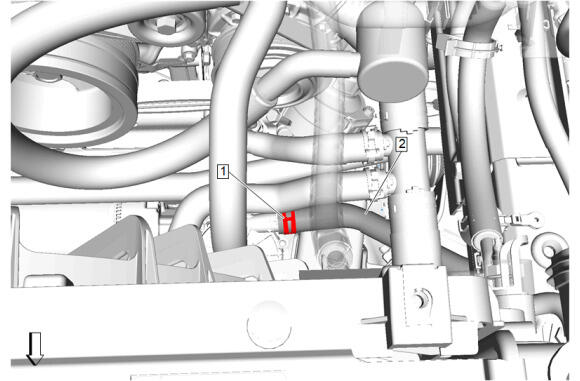

Radiator Outlet Hose (2) @Auxiliary Water Pump - Install - Radiator Outlet Hose Replacement (AWD with LGY Auxiliary Water Pump to Charge Air Cooler)
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Coolant Hose@Auxiliary Water Pump (3) - Install - Charge Air Cooler Coolant Hose Replacement (LGY from Intercooler Heat Exchanger Radiator to Charge Air Cooler Coolant Outlet Pipe) , or Charge Air Cooler Coolant Hose Replacement (LGY from Turbocharger Coolant Feed Pipe Fitting to Charge Air Cooler Coolant Hose) , or Charge Air Cooler Coolant Hose Replacement (LGY from Intake Manifold to Charge Air Cooler Coolant Hose) , or Charge Air Cooler Coolant Hose Replacement (AWD with LGY from Turbocharger Coolant Feed Pipe Fitting to Auxiliary Water Pump)
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Assembly (1) - Install - Air Cleaner Assembly Replacement
Fill the charge air cooling system. Charge Air Cooling System Draining and Filling (LGY)
Start the engine and check for coolant leaks.
