Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Front Bumper Fascia (1) - Remove - Front Bumper Fascia Replacement (without Blackwing) , or Front Bumper Fascia Replacement (with Blackwing)
- Drain the charge air cooling system. Charge Air Cooling System Draining and Filling (LT4)
Auxiliary Radiator Front Inlet Duct- Left Side (1) - Remove - Auxiliary Radiator Front Inlet Duct Replacement - Left Side (LT4)

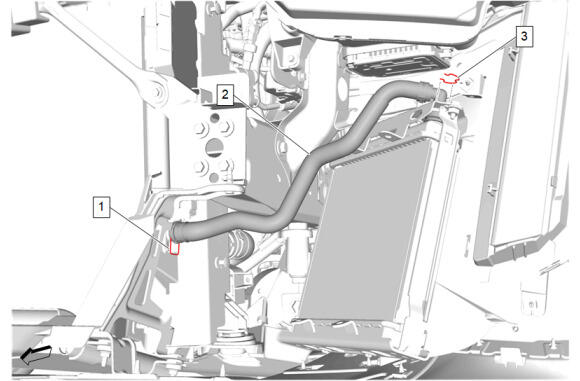

Retainer (1) - Disengage
- Using an appropriate tool, remove the radiator outlet hose retainer (3) from the radiator outlet hose connector.
- Auxiliary Radiator Outlet Hose (2) - Remove
