Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left front tire and wheel assembly. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
  2. Reposition the front portion of the left front wheelhouse liner. Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (Blackwing)
  3. GM5539773Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Radiator Front Outlet Duct Retainer (1) - Remove [3x]

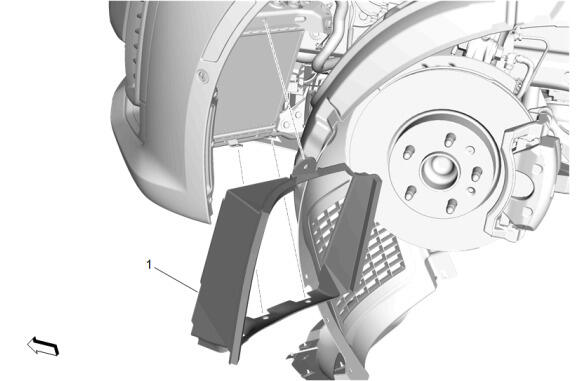

  4. GM5539776Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Radiator Front Outlet Duct (1) - Remove
