Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

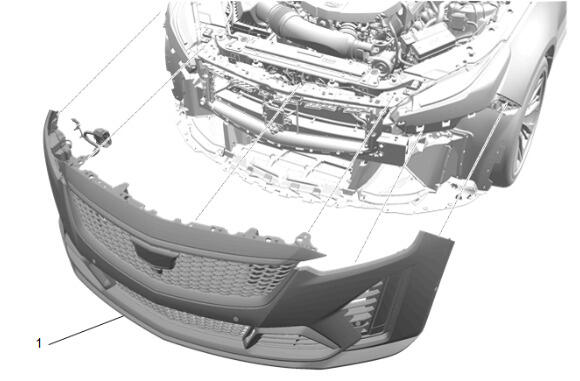

Front Bumper Fascia (1) - Remove - Front Bumper Fascia Replacement (without Blackwing) , or Front Bumper Fascia Replacement (with Blackwing)
Courtesy of GENERAL MOTORS COMPANY

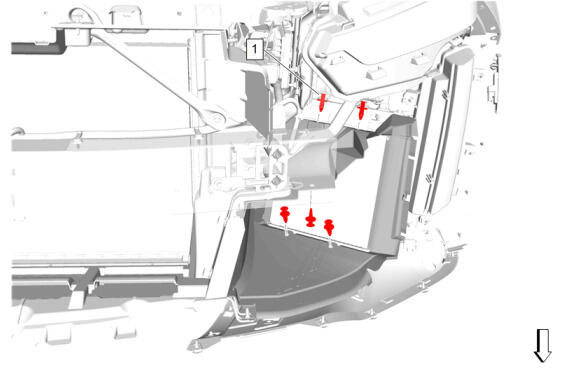

Auxiliary Radiator Front Inlet Duct Retainer (1) - Remove [5x]
Courtesy of GENERAL MOTORS COMPANY

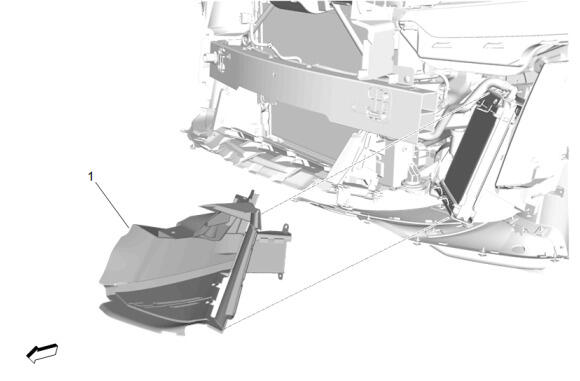

Auxiliary Radiator Front Inlet Duct (1) - Remove
