Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Rear Wheel Drive Shaft Washer (1) - Install NEW
Rear Wheel Drive Shaft (1) - Install
- NOTE:
The rear wheel drive shaft universal joint retainer (1) and washers (2) are serviced as a rear wheel drive shaft universal joint retainer kit consisting of 2 bolts and 1 washer.
Due to the unknown shelf life, prepare the 6 NEW rear wheel drive shaft universal joint retainer (1) for installation as follows:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Install 3 NEW wheel drive shaft flange washers (2).
- Install and tighten the 6 rear wheel drive shaft universal joint retainer (1) in a crisscross pattern.
- First Pass: 50 N.m (37 lb ft)
- Final Pass: 40 - 50 degrees
- Have an assistant apply the brakes.

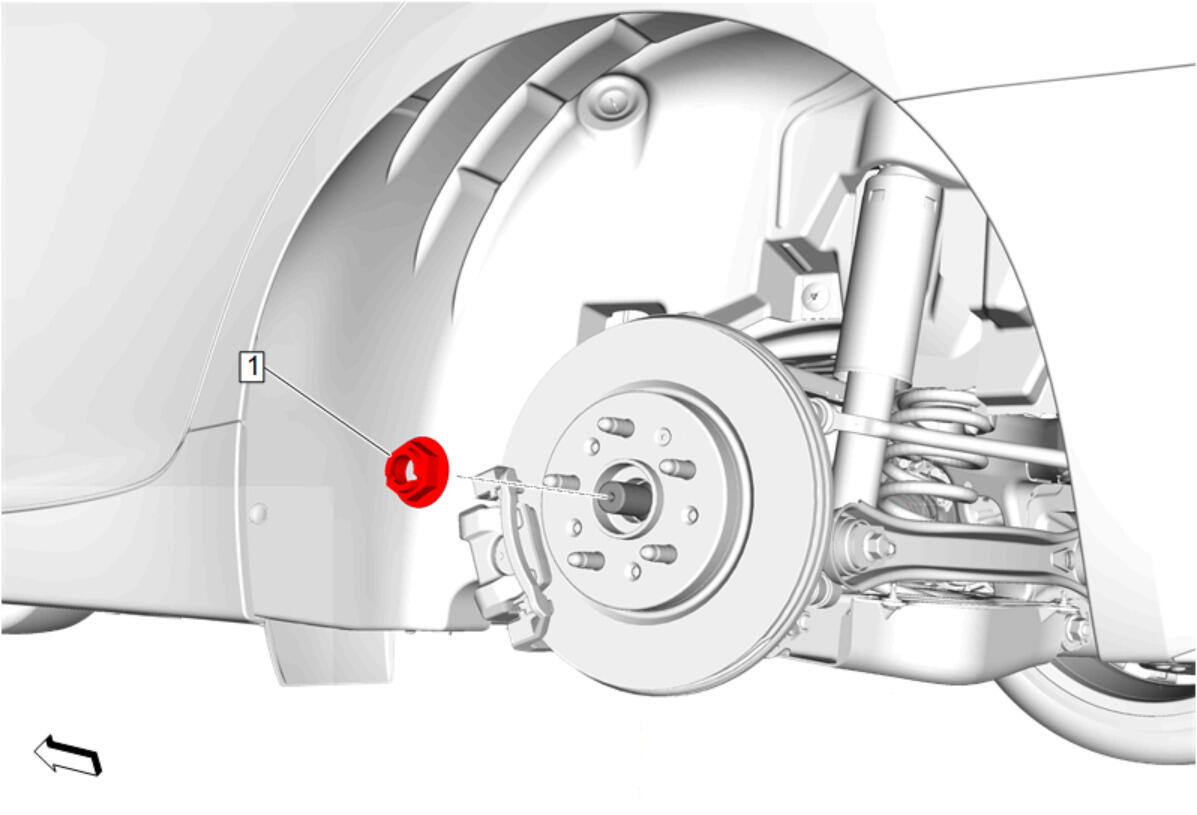

Rear Wheel Drive Shaft Nut (1) - Install NEW and tighten
- First Pass: 150 N.m (111 lb ft)
- Second Pass: loosen 45 degrees
- Final Pass: 270 N.m (199 lb ft)
- Install the left rear tire and wheel assembly. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
- Remove the support and lower the vehicle.
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
CAUTION:
Refer to Fastener Caution .
