Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Steering Wheel Airbag - Remove - Steering Wheel Airbag Replacement
  2. GM5336590Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel (2) - Remove - Steering Wheel Replacement

  3. Steering Wheel Shroud - Remove - Steering Wheel Shroud Replacement

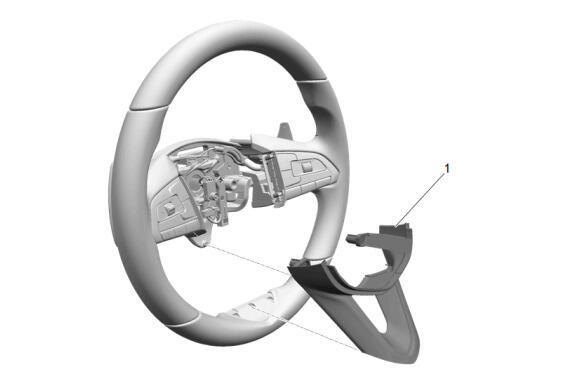

  4. GM6017862Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Trim Spoke Cover Applique (1) - Remove

  5. Transfer components as necessary.
