Steering Column Tilt Wheel and Telescope Switch Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel steering column lower trim cover fasteners and tilt the cover to access the steering column tilt wheel and telescope switch. Instrument Panel Steering Column Lower Trim Cover Replacement
1	Steering Column Tilt Wheel and Telescope Switch Procedure Release the retaining tabs and remove the steering column tilt wheel and telescope switch from the instrument panel steering column lower trim cover. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel steering column lower trim cover fasteners and tilt the cover to access the steering column tilt wheel and telescope switch. Instrument Panel Steering Column Lower Trim Cover Replacement

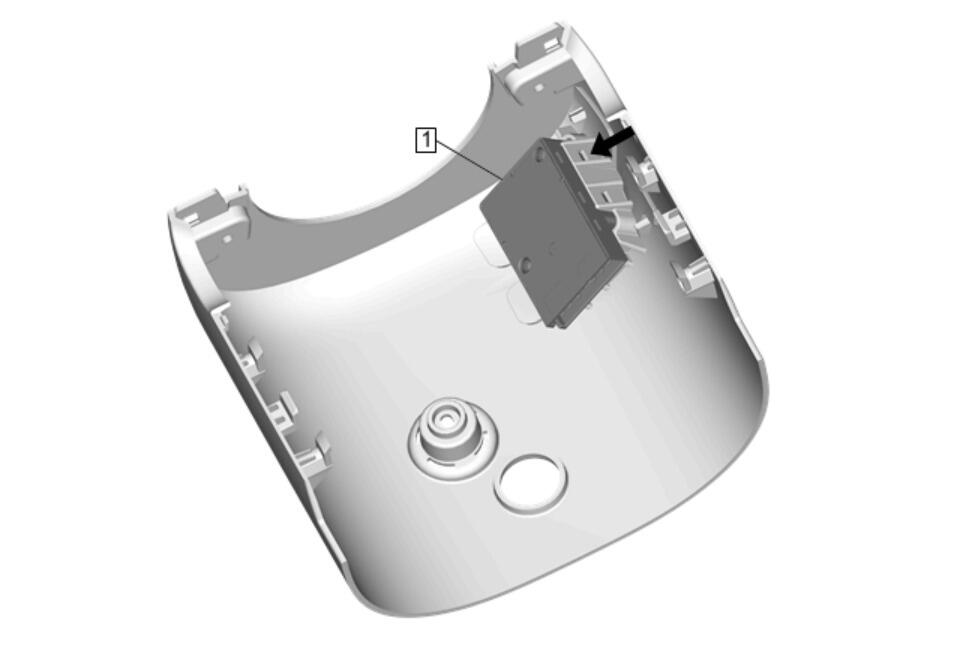

Steering Column Tilt Wheel and Telescope Switch

Procedure

Release the retaining tabs and remove the steering column tilt wheel and telescope switch from the instrument panel steering column lower trim cover.
Disconnect the electrical connector.
