Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Steering Column (1) - Remove - Steering Column Replacement (N37) , or Steering Column Replacement (N38)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

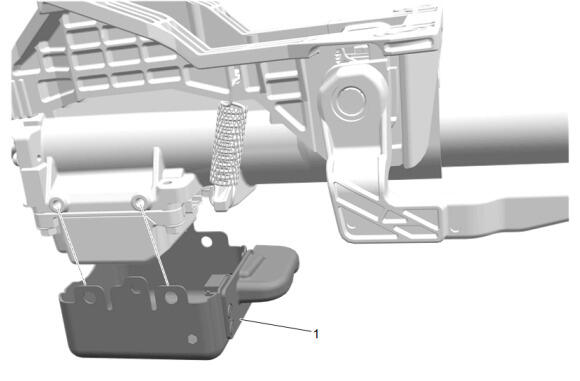

Using the appropriate tool, remove and DISCARD the 4 steering column lock control module protector bolts (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Remove the steering column lock control module protector (2).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Steering Column Lock Control Module Bolt (1) - Remove [4x]
Column Lock Module (2) - Remove
