Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

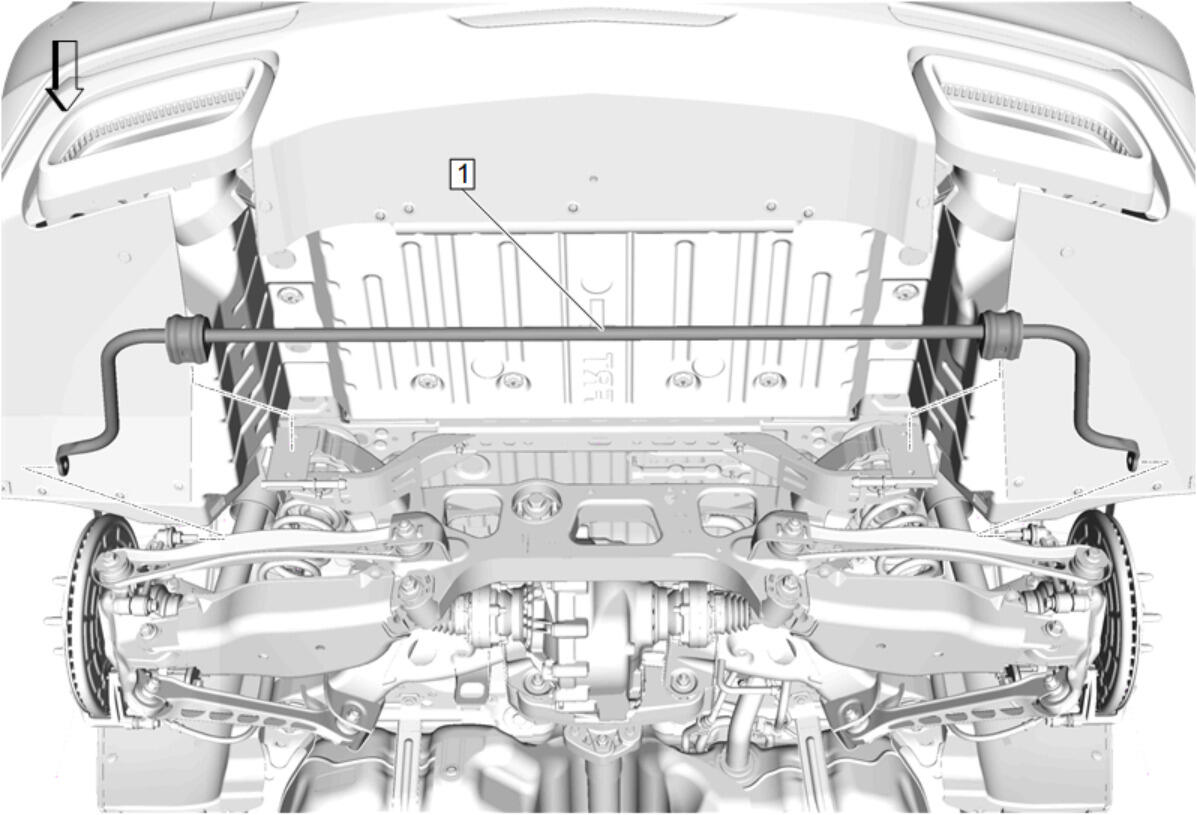

Rear Stabilizer Shaft (1) - Install

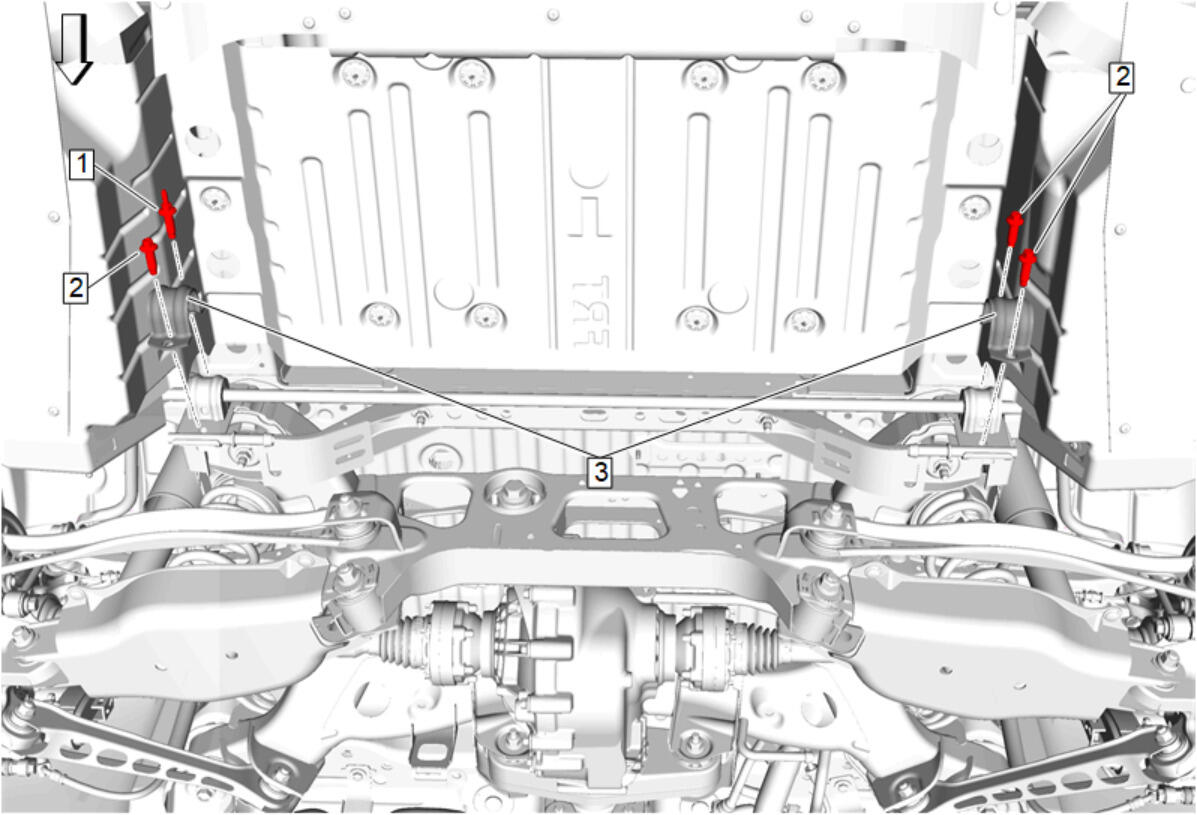

Rear Stabilizer Shaft Clamp (3) - Install [2x]
- Rear Stabilizer Shaft Clamp Bolt (2) - Install and tighten [3x] 58 N.m (43 lb ft)
- Rear Stabilizer Shaft Clamp Stud (1) - Install and tighten 58 N.m (43 lb ft)
Chassis Rear Wiring Harness Clip (1) - Install
Rear Stabilizer Shaft Link (2) @Rear Stabilizer Shaft - Install [2x] - Stabilizer Shaft Link Replacement , or Stabilizer Shaft Link Replacement
- Install the rear tire and wheel assemblies. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
Exhaust Muffler (1) - Install - Exhaust Muffler Replacement (LSY) , or Exhaust Muffler Replacement (LGY) , or Exhaust Muffler Replacement (LT4)
- Remove the support and lower the vehicle.
CAUTION:
Refer to Fastener Caution .
