Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Apply a thin coating of grease evenly ensuring complete coverage of the rear suspension knuckle pilot bore only. Adhesives, Fluids, Lubricants, and Sealers
Align the rear brake shield (2) to the rear suspension knuckle.
- Rear Wheel Hub (1) - Install
Prepare the 3 rear wheel hub bolts (1) for installation as follows:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Rear Wheel Hub Bolt (1) - Install and tighten [3x]
- First Pass: 100 N.m (74 lb ft)
- Final Pass: 15 - 30 degrees

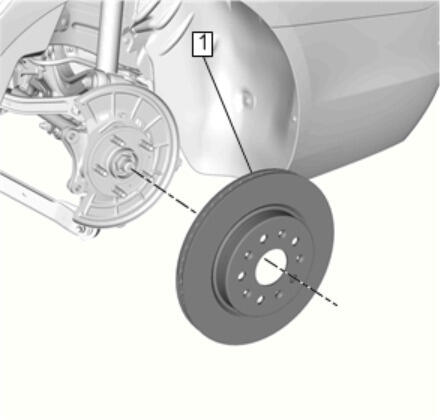

Rear Brake Rotor (1) - Install - Rear Brake Rotor Replacement (JL9, J56) , or Rear Brake Rotor Replacement (J6H) , or Rear Brake Rotor Replacement (J57)
- Rear Wheel Drive Shaft@Rear Wheel Hub - Install
Rear Wheel Speed Sensor (2) @Rear Suspension Knuckle - Install - Rear Wheel Speed Sensor Replacement (J56, JL9) , or Rear Wheel Speed Sensor Replacement (J57, J6H)
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
- Remove the support and lower the vehicle.
CAUTION:
Refer to Fastener Caution .
