Single Use Fasteners and Components

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Rear Shock Absorber Bolt
Rear Suspension Lower Control Arm Outer Bolt
Rear Suspension Lower Control Arm Inner Bolt

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57) Rear Suspension Lower Control Arm Replacement

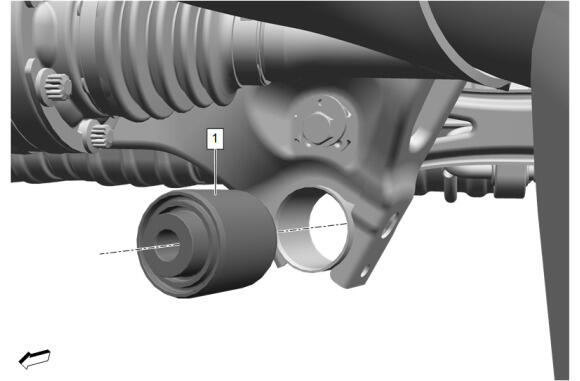

1	Rear Suspension Lower Control Arm Bushing NOTE: Support the rear knuckle with a suitable jack stand. Procedure Using the DT-50806 - 2 , DT-50806 - 7 and the J-45725-2 bushing remover installer, remove and install the lower control arm bushing. Special Tools DT-50806 Bushing Remover Installer J-45725-2 Bushing Remover Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Lifting and Jacking the Vehicle
Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
Rear Suspension Lower Control Arm Replacement

Rear Suspension Lower Control Arm Bushing

NOTE:

Support the rear knuckle with a suitable jack stand.

Procedure
Using the DT-50806 - 2 , DT-50806 - 7 and the J-45725-2 bushing remover installer, remove and install the lower control arm bushing.

Special Tools

DT-50806 Bushing Remover Installer
J-45725-2 Bushing Remover Installer

For equivalent regional tools, refer to Special Tools .
