Removal Procedure
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
Rear Wheel Speed Sensor (2) @Rear Suspension Knuckle - Remove - Rear Wheel Speed Sensor Replacement (J56, JL9) , or Rear Wheel Speed Sensor Replacement (J57, J6H)
Rear Suspension Upper Trailing Link (2) @Rear Suspension Knuckle - Remove - Rear Suspension Upper Trailing Link Replacement (FE4)
Rear Stabilizer Shaft Link (2) @Rear Suspension Knuckle - Remove - Stabilizer Shaft Link Replacement , or Stabilizer Shaft Link Replacement
Rear Suspension Lower Trailing Link (2) @Rear Suspension Knuckle - Remove - Rear Suspension Lower Trailing Link Replacement
Rear Suspension Adjust Link (3) @Rear Suspension Knuckle - Remove - Rear Suspension Adjust Link Replacement
Rear Suspension Upper Control Arm (2) @Rear Suspension Knuckle - Remove - Rear Suspension Upper Control Arm Replacement

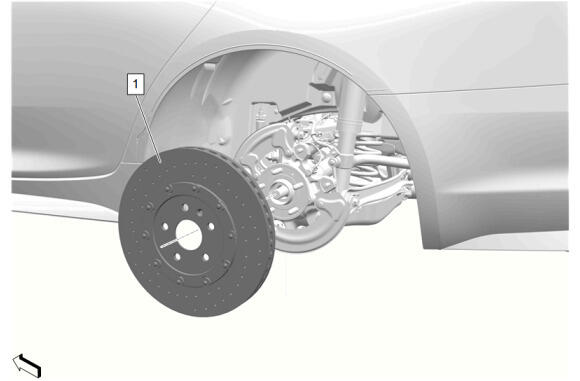

Rear Brake Rotor (1) - Remove - Rear Brake Rotor Replacement (JL9, J56) , or Rear Brake Rotor Replacement (J6H) , or Rear Brake Rotor Replacement (J57)

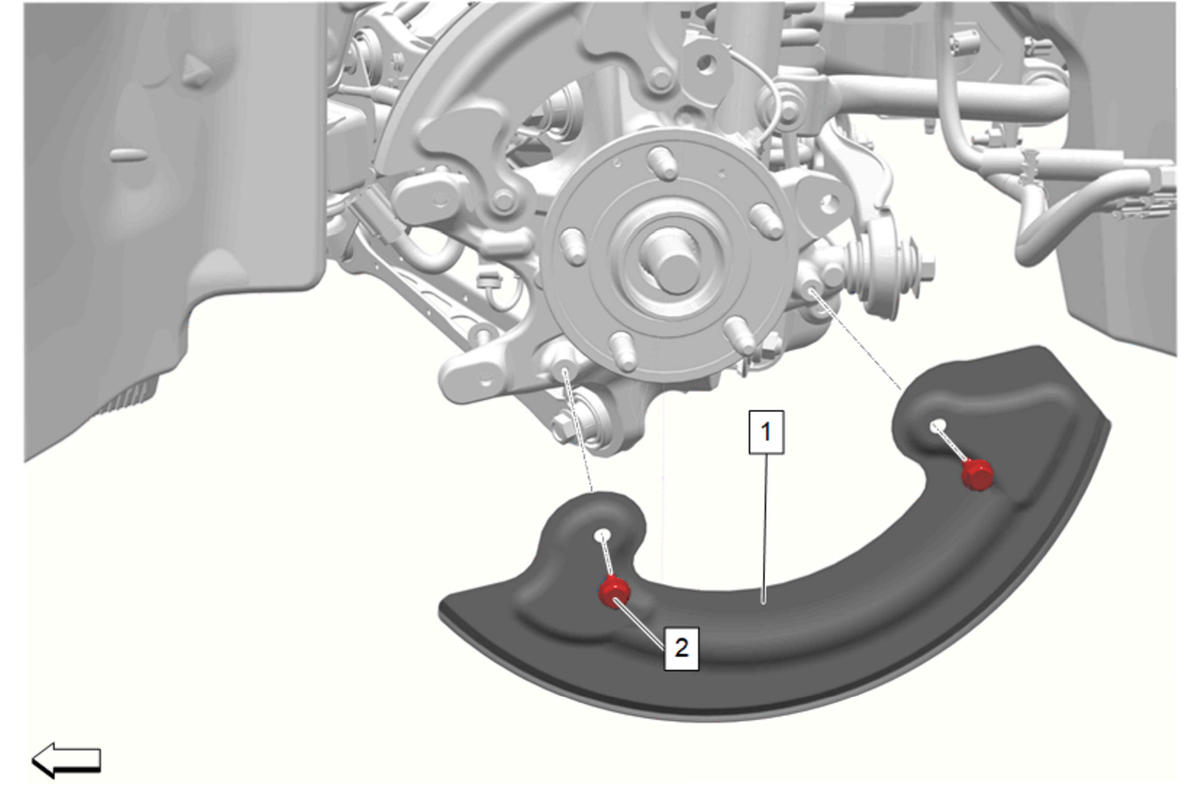

Rear Brake Lower Shield (1) - Remove - REAR BRAKE LOWER SHIELD REPLACEMENT (J57, J6H)

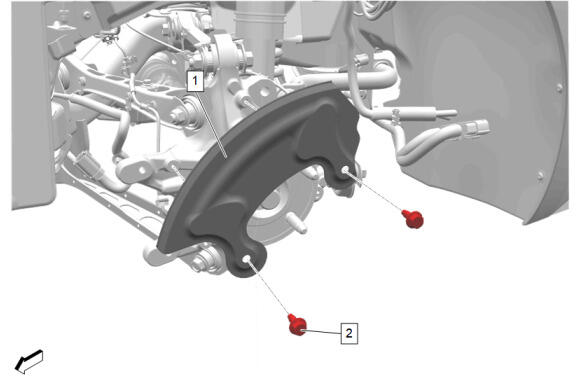

Rear Brake Shield (1) - Remove - Rear Brake Shield Replacement (JL9, J56) , or Rear Brake Shield Replacement (J57, J6H)

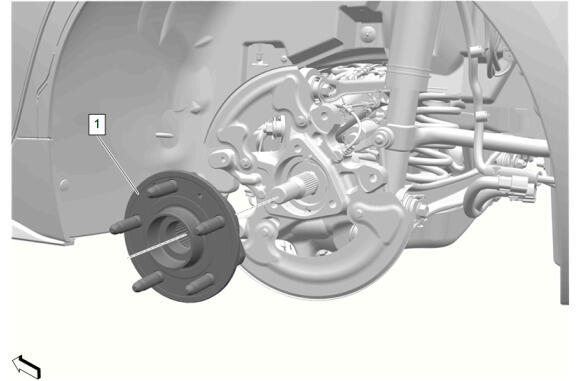

Rear Wheel Hub (1) - Remove - Rear Wheel Bearing and Hub Replacement
Electronic Suspension Rear Vertical Accelerometer (2) @Rear Suspension Knuckle - Remove - Electronic Suspension Rear Vertical Accelerometer Replacement (FE4)
Rear Suspension Lower Control Arm (2) @Rear Suspension Knuckle - Remove - Rear Suspension Lower Control Arm Replacement

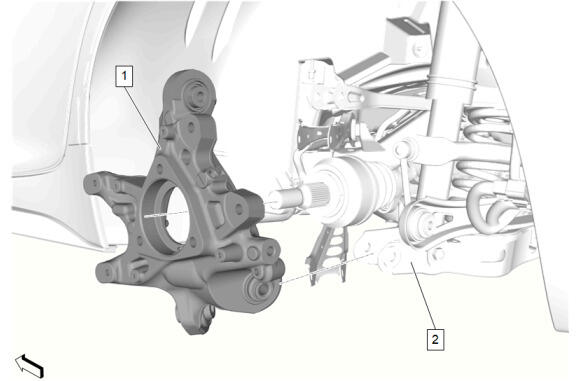

- Rear Suspension Knuckle (1) - Remove
