Outside Rearview Mirror Housing Upper Cover Replacement (DWK, DMB, DXR)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

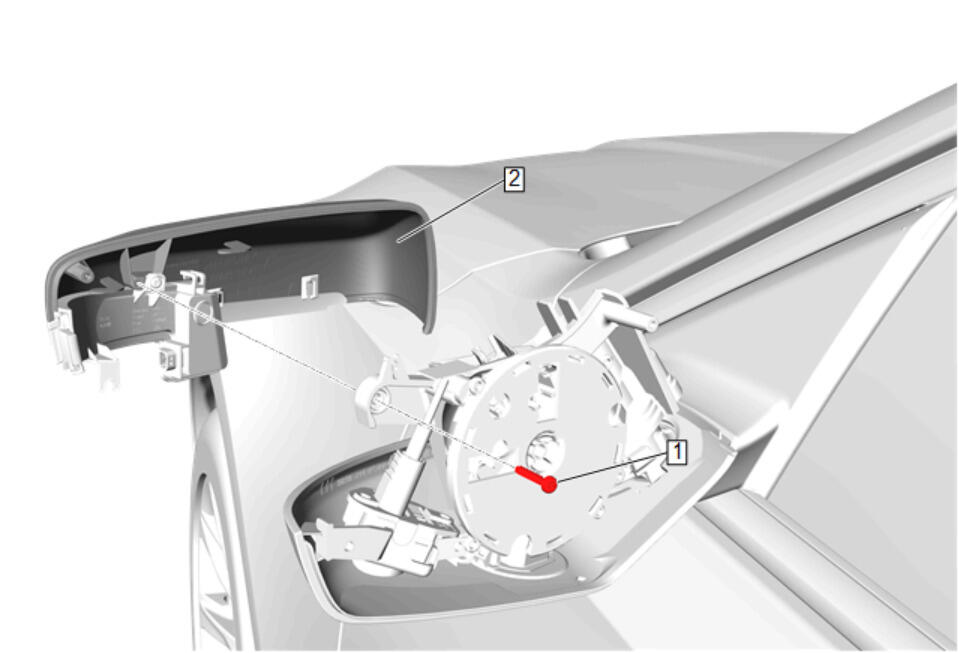

| Callout | Component Name |
|---|---|
| Preliminary Procedure Outside Rearview Mirror Housing Bezel Replacement (DWK, DMB, DXR) |
|
| 1 | Outside Rearview Mirror Housing Opening Cover Bolt
CAUTION:
Refer to Fastener Caution . Tighten 0.9 N.m (8 lb in) |
| 2 | Outside Rearview Mirror Housing Upper Cover Procedure
|
